Gima V2008 vascular Doppler with fixed 8MHz probe
Gima V2008 vascular Doppler with fixed 8MHz probe
Personal advice
Description

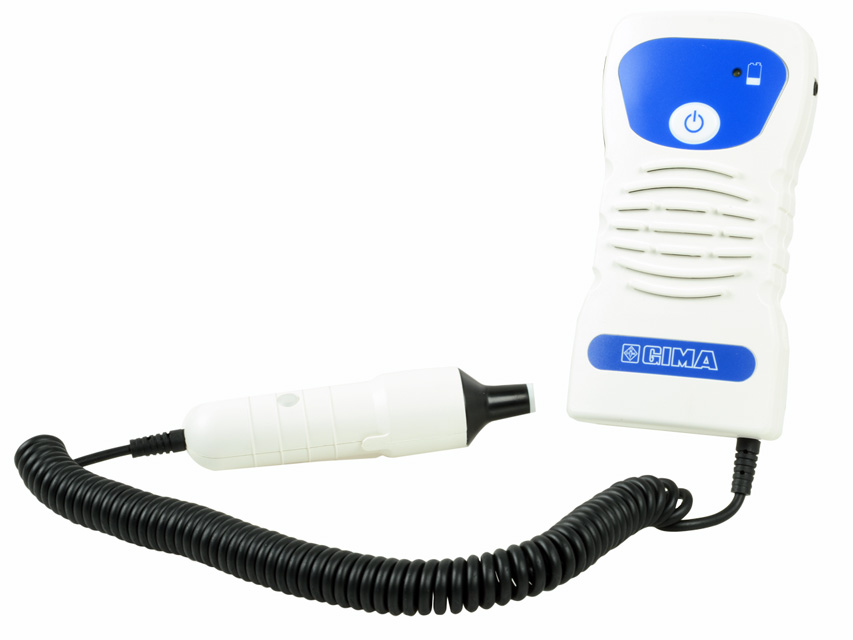

High performance Gima V2008 vascular Doppler that has been configured with a portable design for more practical and comfortable use. Vascular flow signals and fetal heart rate are easily located with the transducer, while internal signal processing minimizes noise artifacts. The flow signal is also available through the built-in speaker, adjustable via the rotary volume control.
2 year warranty.
Certificates:
- CE Class II A medical product.
- Complies with ISO 9001 and ISO 13485 standards.
Technical specifications:
• Ultrasound:
- Frequency: 8 MHz, continuous wave.
- Transducer: 2 crystal narrow beam.
- Output power: <15 mW/cm² SATA.
- Audio response: 300 Hz-4 KHz.
• Controls:
- 1 key for on/off.
- Rotary volume.
- Low battery indicator: yellow LED.
• Power source
- 9V alkaline battery (not included).
- Duration: >9 hours.
- Audio output for headphones (not included).
- Manufacturing material: ABS/Noryl.
- Dimensions: 150x75 mm.
- Weight: 299 g (with transducer).
Includes:
- 8 MHz fixed probe.
- Ultrasound gel bottle.
- Carrying case.
- User manual in the following languages: GB, FR, DE, IT, ES, GR and PT.
2 year warranty.
Certificates:
- CE Class II A medical product.
- Complies with ISO 9001 and ISO 13485 standards.
Technical specifications:
• Ultrasound:
- Frequency: 8 MHz, continuous wave.
- Transducer: 2 crystal narrow beam.
- Output power: <15 mW/cm² SATA.
- Audio response: 300 Hz-4 KHz.
• Controls:
- 1 key for on/off.
- Rotary volume.
- Low battery indicator: yellow LED.
• Power source
- 9V alkaline battery (not included).
- Duration: >9 hours.
- Audio output for headphones (not included).
- Manufacturing material: ABS/Noryl.
- Dimensions: 150x75 mm.
- Weight: 299 g (with transducer).
Includes:
- 8 MHz fixed probe.
- Ultrasound gel bottle.
- Carrying case.
- User manual in the following languages: GB, FR, DE, IT, ES, GR and PT.
