Reference. 1080BGC2710

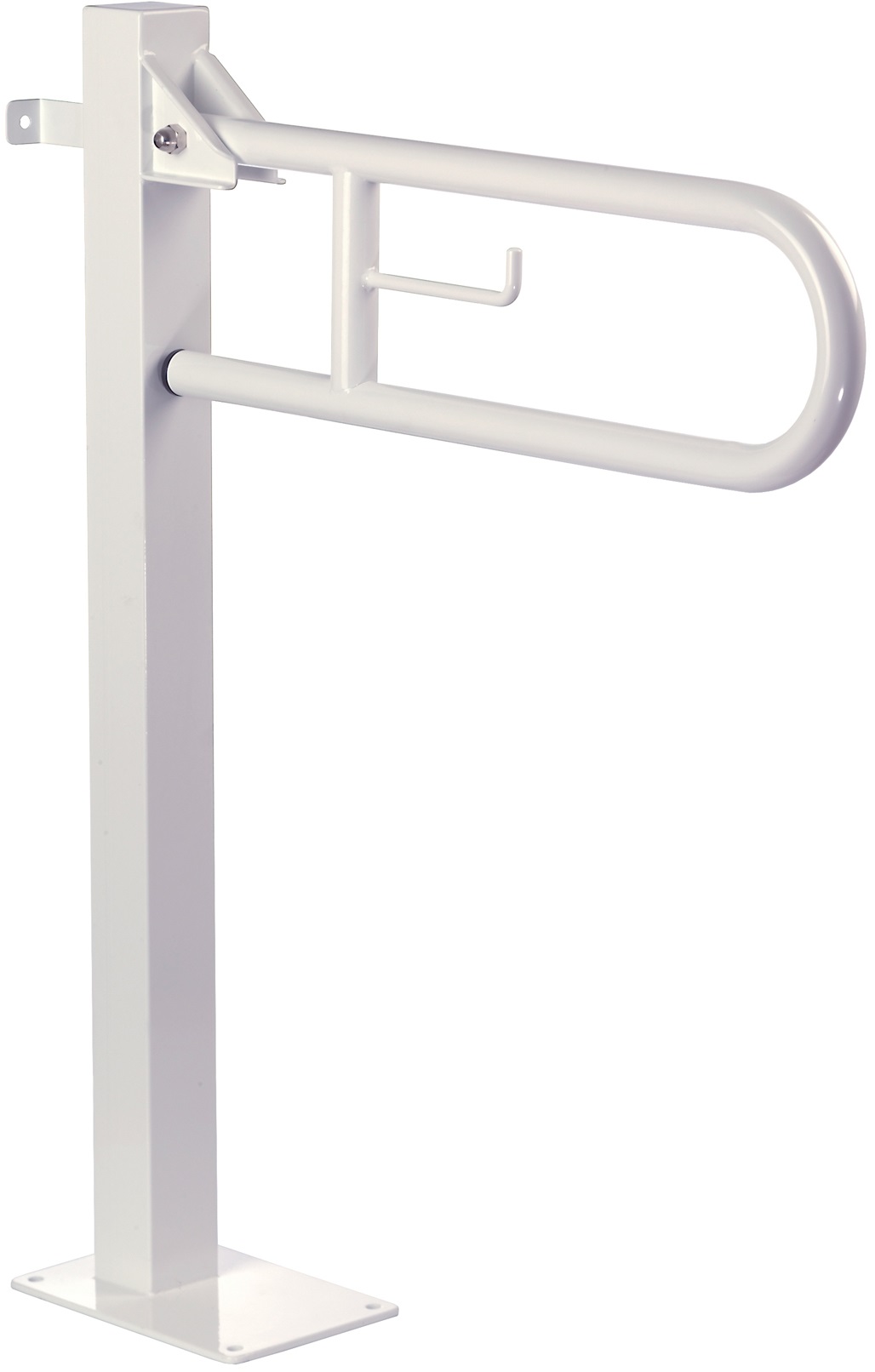

Foldable vertical support bar with fixed white stainless steel column.
Vertical swivel support bar on column, for floor installation and to be placed next to the toilet, made of AISI 201 stainless steel with a white finish.
Personal advice
Description
A vertically swiveling foldable support bar on a column, specially designed for floor installation and to be placed next to the toilet.
Made with AISI 201 stainless steel, this bar consists of a U-shaped bent tube with an intermediate crosspiece that has a welded toilet paper holder and a column to fix the bar to the floor, which consists of a square tube welded on a rectangular anchoring plate to the floor.
Suitable for specific sinks for elderly or mobility-impaired people, especially with support to facilitate the transfer from the wheelchair to the toilet, and indicated to achieve bathrooms and public spaces without architectural barriers to accessibility.
Model suitable for communities.
It has a safety system that keeps the bar locked in a vertical position, preventing accidental collapse.

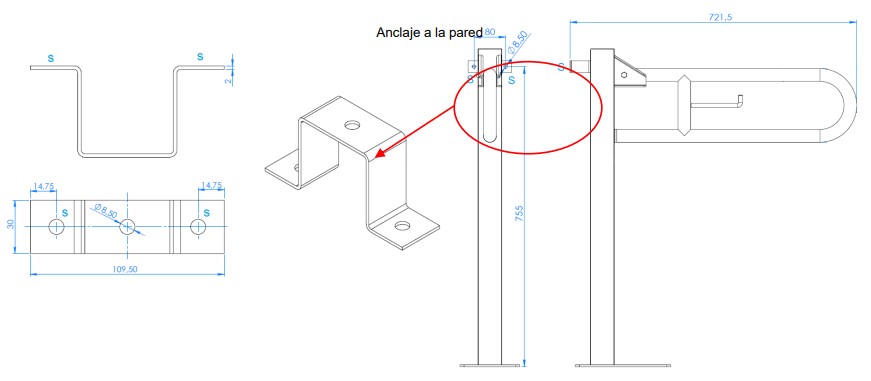

Includes stainless steel plugs and screws to anchor the bar on a concrete floor and to a brick wall.
*Designed and manufactured according to the guidelines of the Spanish SUA (Safety of Use and Accessibility) regulations.
Features:

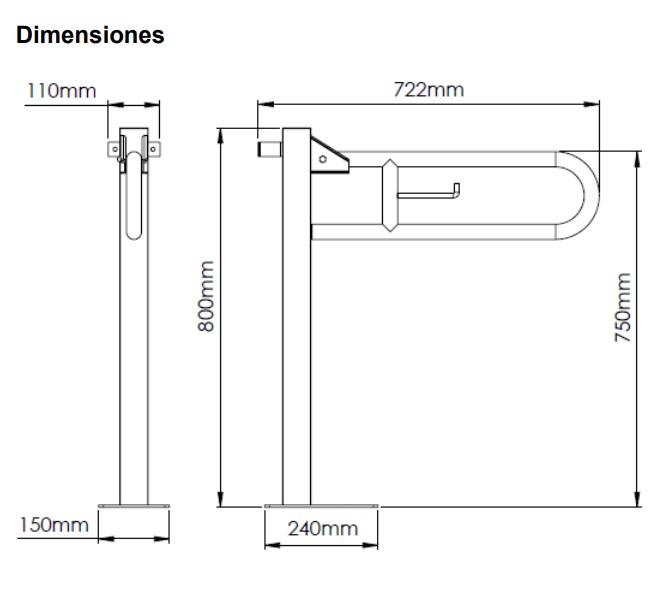

- Dimensions: 722 x 800 x 150 mm.
- Bar diameter: 32mm.
- Column tube thickness: 2 mm.

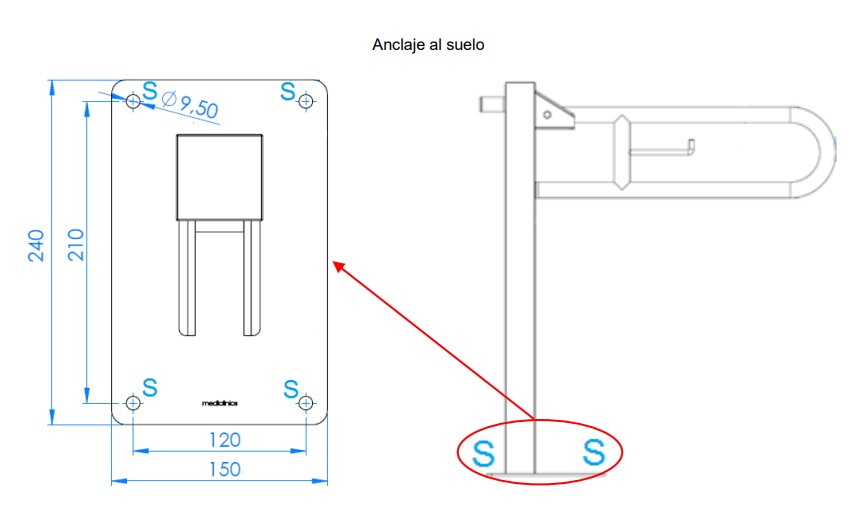

- Floor fixing plate dimensions: 240 x 5 x 150 mm.
- Floor fixing plate thickness: 5.0 mm.
- Wall fixing plate thickness: 2.0 mm.
- Support axis bracket thickness: 3.0 mm.
- Toilet paper holder diameter: 10 mm.
*Installation not included
Made with AISI 201 stainless steel, this bar consists of a U-shaped bent tube with an intermediate crosspiece that has a welded toilet paper holder and a column to fix the bar to the floor, which consists of a square tube welded on a rectangular anchoring plate to the floor.
Suitable for specific sinks for elderly or mobility-impaired people, especially with support to facilitate the transfer from the wheelchair to the toilet, and indicated to achieve bathrooms and public spaces without architectural barriers to accessibility.
Model suitable for communities.
It has a safety system that keeps the bar locked in a vertical position, preventing accidental collapse.
Includes stainless steel plugs and screws to anchor the bar on a concrete floor and to a brick wall.
*Designed and manufactured according to the guidelines of the Spanish SUA (Safety of Use and Accessibility) regulations.
Features:
- Dimensions: 722 x 800 x 150 mm.
- Bar diameter: 32mm.
- Column tube thickness: 2 mm.
- Floor fixing plate dimensions: 240 x 5 x 150 mm.
- Floor fixing plate thickness: 5.0 mm.
- Wall fixing plate thickness: 2.0 mm.
- Support axis bracket thickness: 3.0 mm.
- Toilet paper holder diameter: 10 mm.
*Installation not included
