Foldable seat with wall support

Foldable seat with wall-mounted leg, made with solid phenolic resin sheet, ivory color, and with AISI 304 stainless steel structure, satin finish.

Personal advice

247,00€ (271,70€ VAT INCLUDED)

Secure payment

Approximate delivery time of 10 to 20 days

Inquiry about the product

Description

Folding seat with wall leg, made with solid phenolic resin sheet, ivory color and with AISI 304 stainless steel structure, satin finish.

Product Details:
- Built with materials that ensure good maintenance and cleaning.
- Water resistant.
- Long lifespan.
- Suitable for bathrooms specifically designed for people with reduced mobility or of advanced age.
- Suitable for communities.
- Equipped with a system that keeps the seat in an upright position until it is released by pulling from the top.
- Position of use: horizontal. This is the recommended position to allow accessibility.

Components and materials:

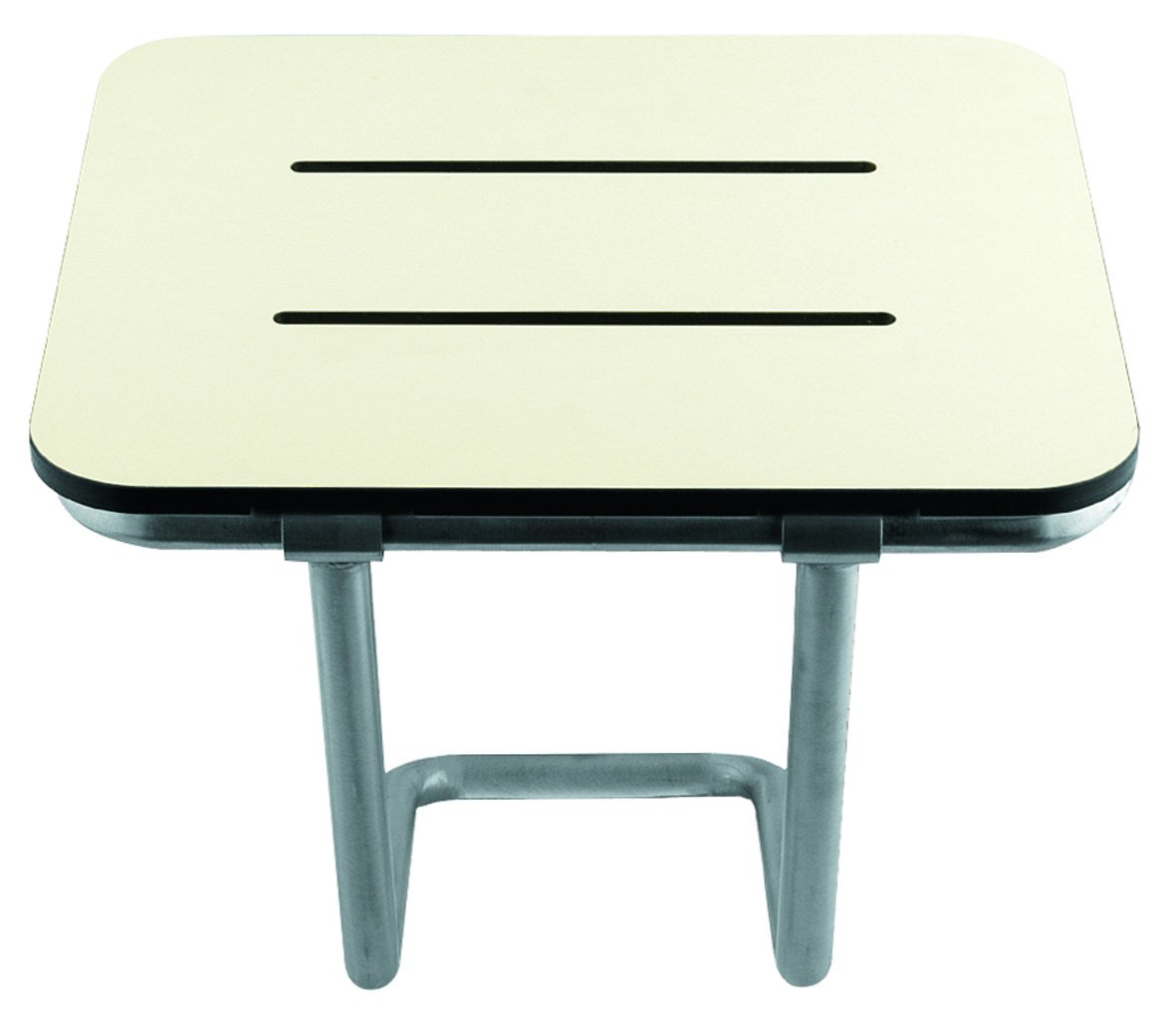

- Compact design seat and one-piece, made with non-porous and unbreakable 8 mm thick phenolic sheets.
- Color: ivory on the outer surfaces.
- Has a slot for water drainage.
- AISI 304 stainless steel frame with satin finish and tubes of 30 mm and 25 mm in diameter.
- 2 circular wall anchor plates, made of AISI 304 stainless steel, with satin finish, diameter of 75 mm and thickness of 5 mm. They have 3 holes for screwing to the wall.
- Closing and opening guide made of AISI 304 stainless steel, and with satin finish. Its wall attachment is based on 4 stainless steel screws (NOT INCLUDED).
- Wall support leg made with AISI 304 stainless steel tube of 25 mm diameter and 1.2 mm thickness. This slides on the closing and opening guide fixed to the wall.

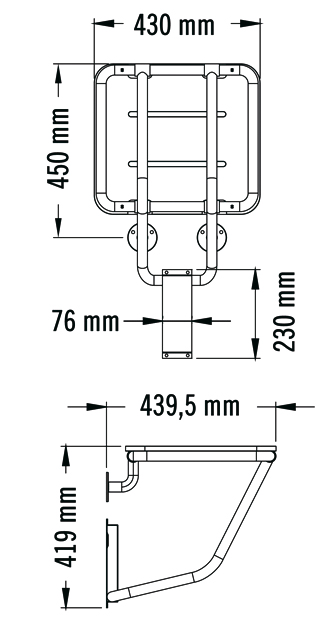

Technical specifications:
- Frame tube diameters: Ø 30 mm - Ø 25 mm.
- Frame tube thickness: 1.6 mm.
- Diameter of wall fixing plates: Ø 75 mm.
- Thickness of wall anchor plates: 5 mm.
- Diameter of support leg tube: Ø 25 mm.
- Thickness of support leg tube: 1.2 mm.
- Maximum load supported: 113 kg. (the weight that the seat can support will depend on the type of wall and the fixing used)

Regulations and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.

*The fixing screws for brick wall are NOT included with the product.
**It is recommended to use stainless steel wall fixing means.
