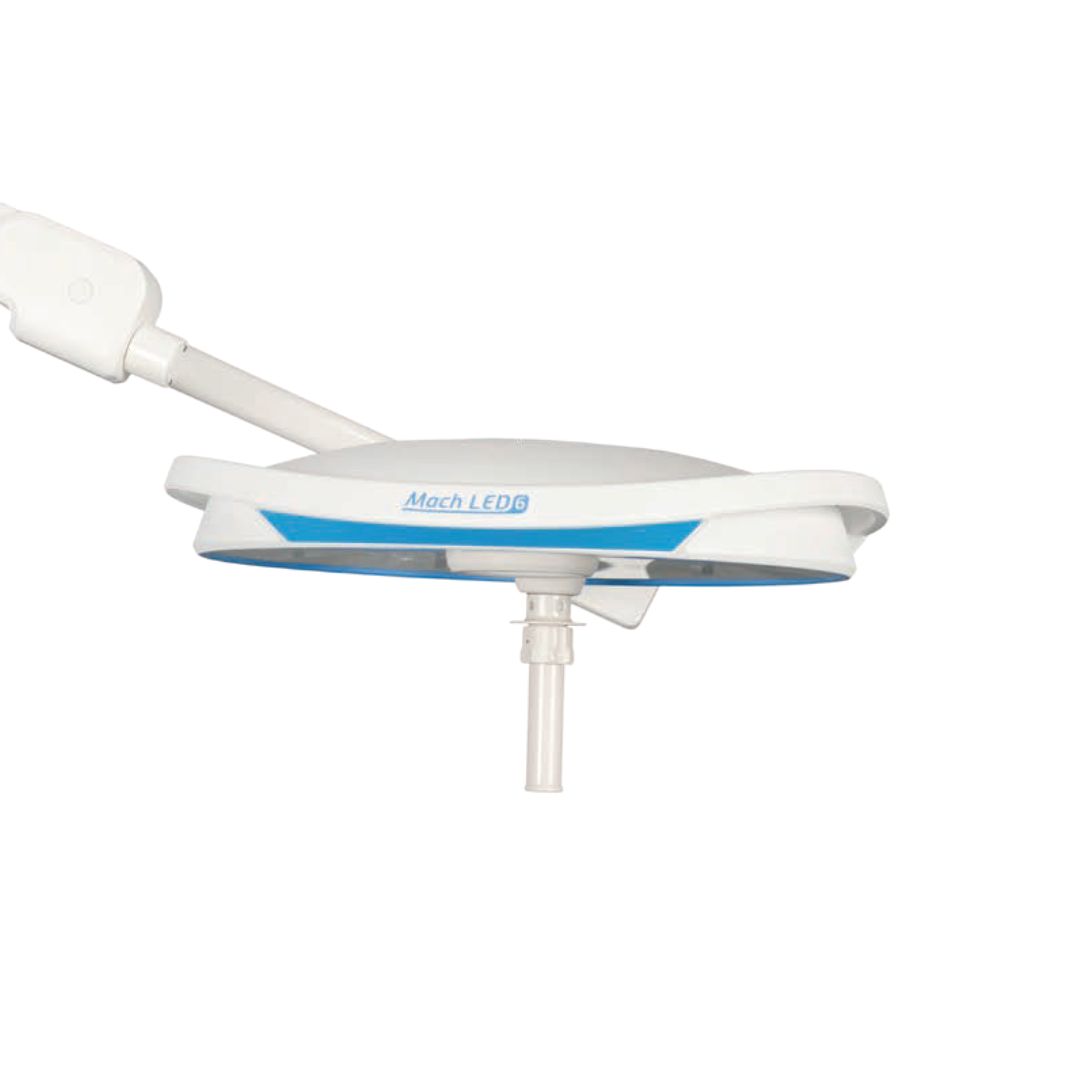

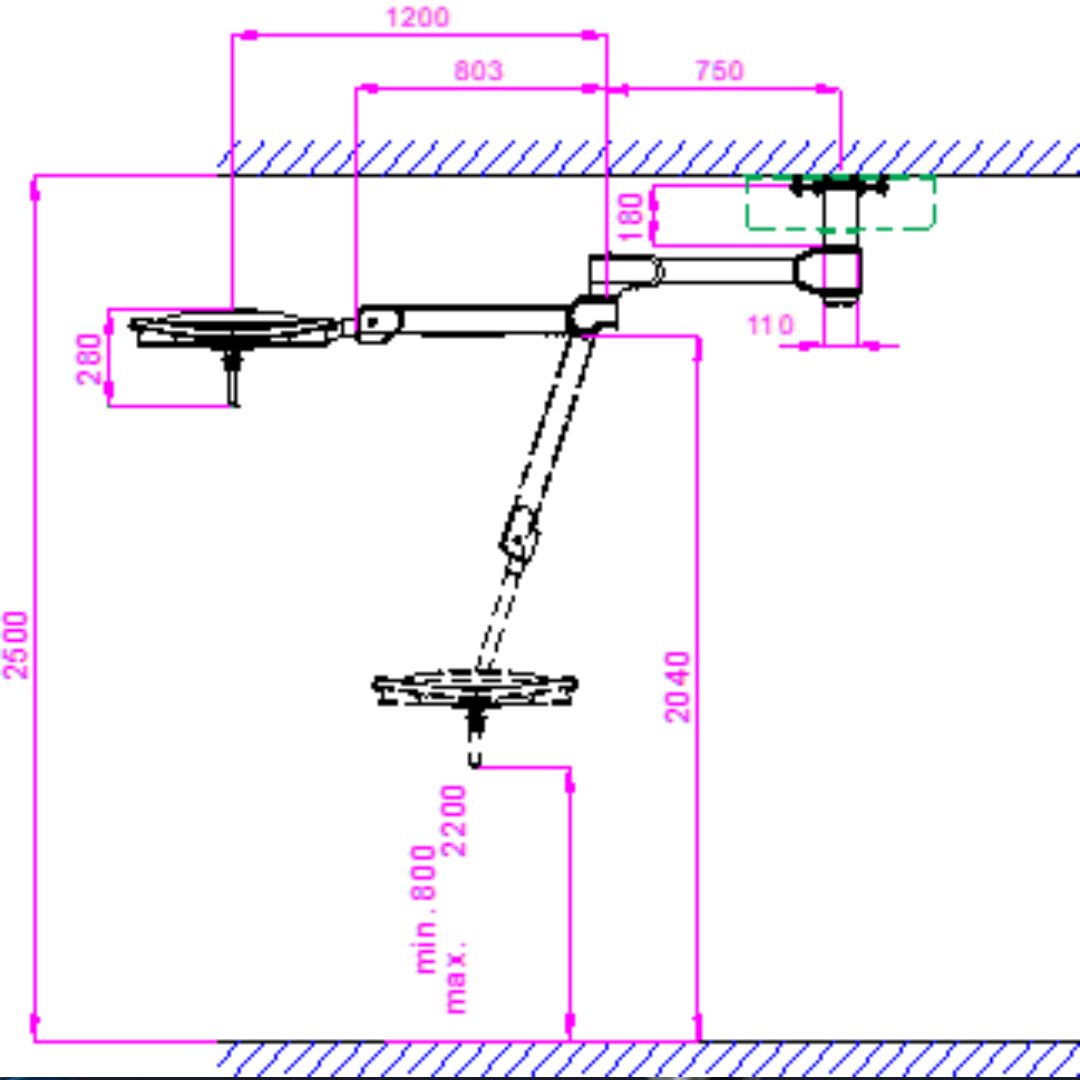

Dr. Mach LED 8MC surgical lamp, 160,000 Lux at 1 m. Anchoring to low ceilings up to 2.8 m.

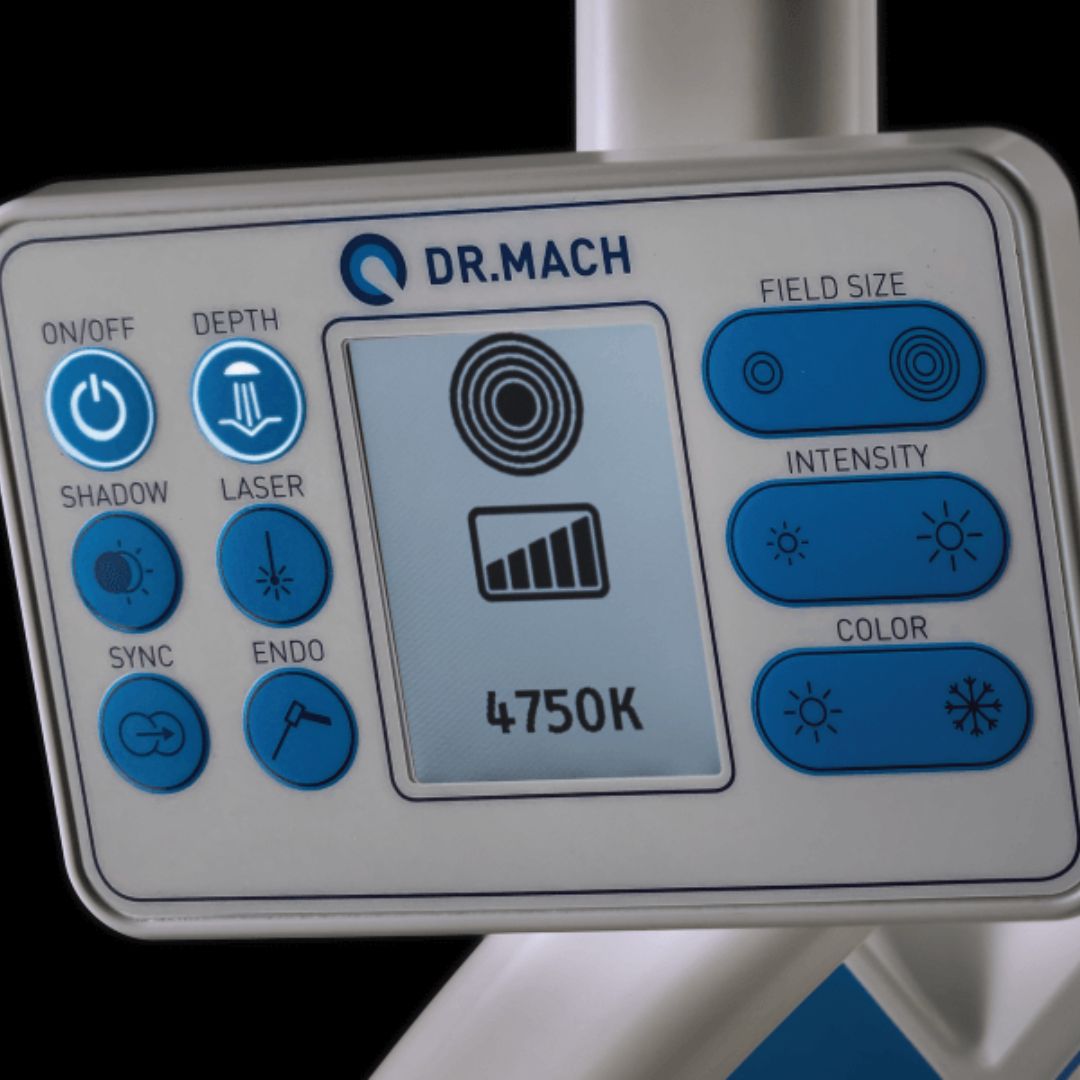

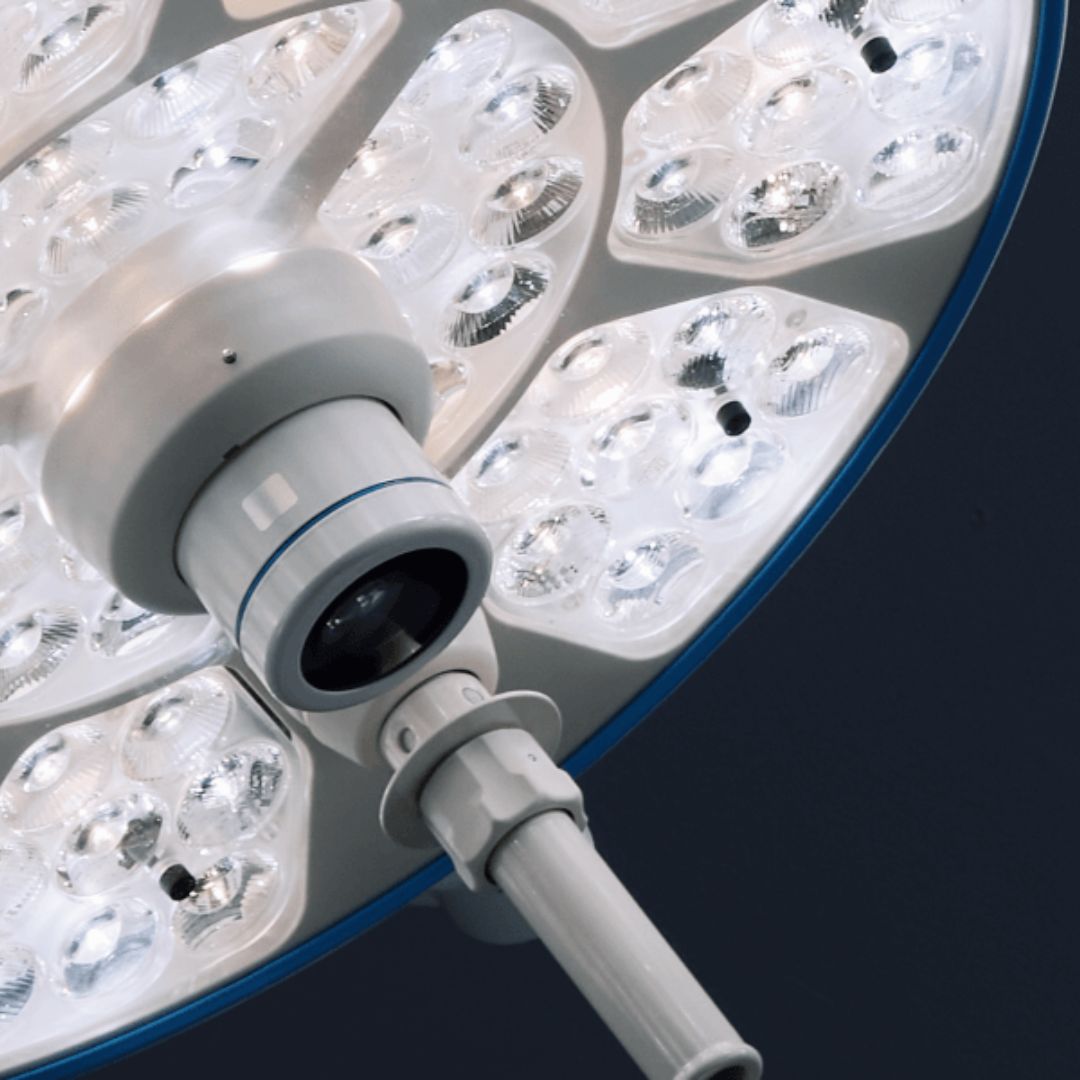

The Dr. Mach 8MC LED surgical lamp has a state-of-the-art cascade lighting system, making it ideal for all types of medical consultations and operating rooms. It is made of high-quality, lightweight aluminum and has a coating of antimicrobial materials to ensure that pathogens do not proliferate on its surface and that cross-contamination associated with its use is reduced. Its powerful lighting panel consists of 99 LED lights with an intensity of 160,000 Lux that faithfully reproduce color, providing a clear visualization even of the deepest and narrowest surgical wounds. General Features - High power lamp equipped with a state-of-the-art lighting system - Made with high-quality aluminum coated with antimicrobial materials to prevent the proliferation of microorganisms - Removable positioning handle capable of withstanding up to 200 sterilization cycles - Operated through an intuitive interface consisting of a screen and a keyboard - Aerodynamic finishes to favor the circulation of laminar flow in air-conditioned spaces - Electronic focus of the beam of light for precise and optimized illumination - Easy calibration of light intensity and color temperature - LED bulbs with low heat emission - Cascade lighting, ideal for illuminating deep wounds - Exceptionally accurate and faithful color reproduction - Ability to connect with external interfaces (Storz, Bender, etc.) - Classified as a Class I medical device according to the MDR Technical Specifications - Luminous density (at 1 m distance): 160,000 Lux - Luminous field diameter (d10): 188 mm - Luminous field diameter (d50): 103 mm - Residual light intensity with one shadow: 68 % - Residual light intensity with two shadows: 53 % - Illumination depth at 20 %: 1,890 mm - Illumination depth at 60 %: 900 mm - Color rendering index Ra: 98 - Color rendering index R9: 99 - Color rendering index R13: 99 - Lamp body diameter: 66 cm - Focusable luminous field diameter: 19 - 30 cm - Color temperature: 3,750, 4,000, 4,250, 4,500 or 4,750 K - Number of LEDs: 99 - Working distance: 70 - 160 cm - Dimming range: 50 - 100 % - Dimming levels: 5 - Power supply: 24 - 30 V DC - Consumption: 80 W/3.3 A - Input voltage: 100 - 240 V AC, 50/60 Hz - Input current consumption: 5.8 A max. - Output voltage: 28 V DC - Output power: 190 W - Luminous efficiency: 280 lm/W - Radiation force at a distance of 1 m: 576 W/m2 - Maximum radiation force at a distance of 0.69 m: 694 W/m2 - Temperature increase in the upper area: 0.5 °C - Ee/Ec ratio: 3.6 (mW/m2)/lx - Turbulence level: 19% (according to DIN 1946-4) - Interference suppression: EN 55011 (CISPR 11), EN 60601-1-2 (IEC 60601-1-2) - Protection type: I - IP protection class (according to IEC 60529): IP 54 (lamp) and IP 20 (suspension system) - Estimated lifespan: 10 years - Estimated lifespan of LEDs: 60,000 h - Lamp body weight (including accessories): 19.5 kg max. - Operating temperature: from +5°C to +40°C - Relative humidity of operation: from 30% to 75% - Operational pressure: from 700 hPa to 1060 hPa Optional Accessories (not included and at an additional cost) - Articulated version with gimbals - Integrated laser pointer - Mechanical adjustment of the luminous field - Automatic shadow compensation - Modification of the color temperature range (from 3,500 to 5,500 K; 4,250 K non-modifiable) - Modification of the dimming range (from 20 to 100 %) - Built-in video camera Support: attachment to ceilings up to 2.8 m high Includes model TK 270 ceiling anchor ring (ref. 401415000270). * Installation not included. * Images may contain optional accessories not included in the price.
