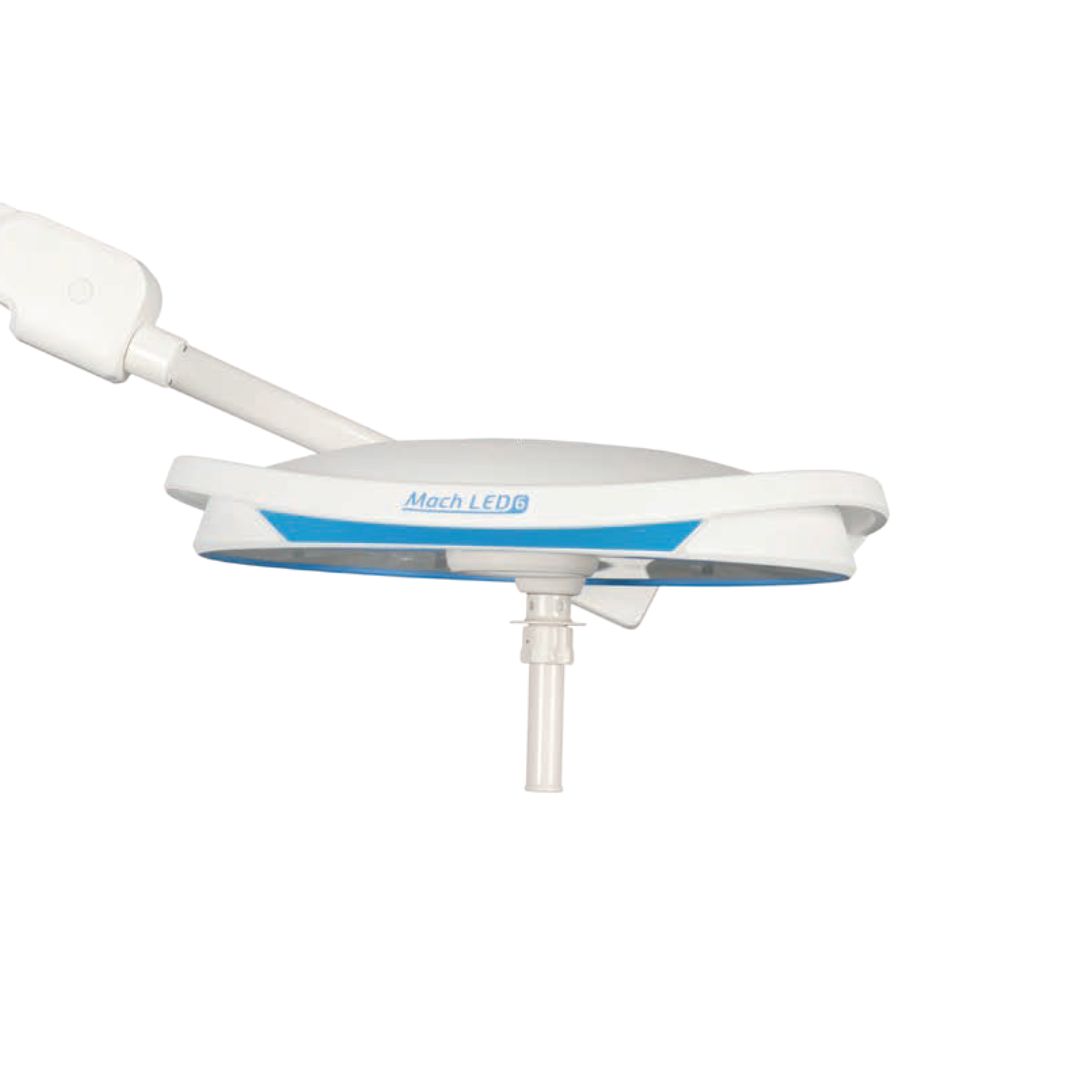

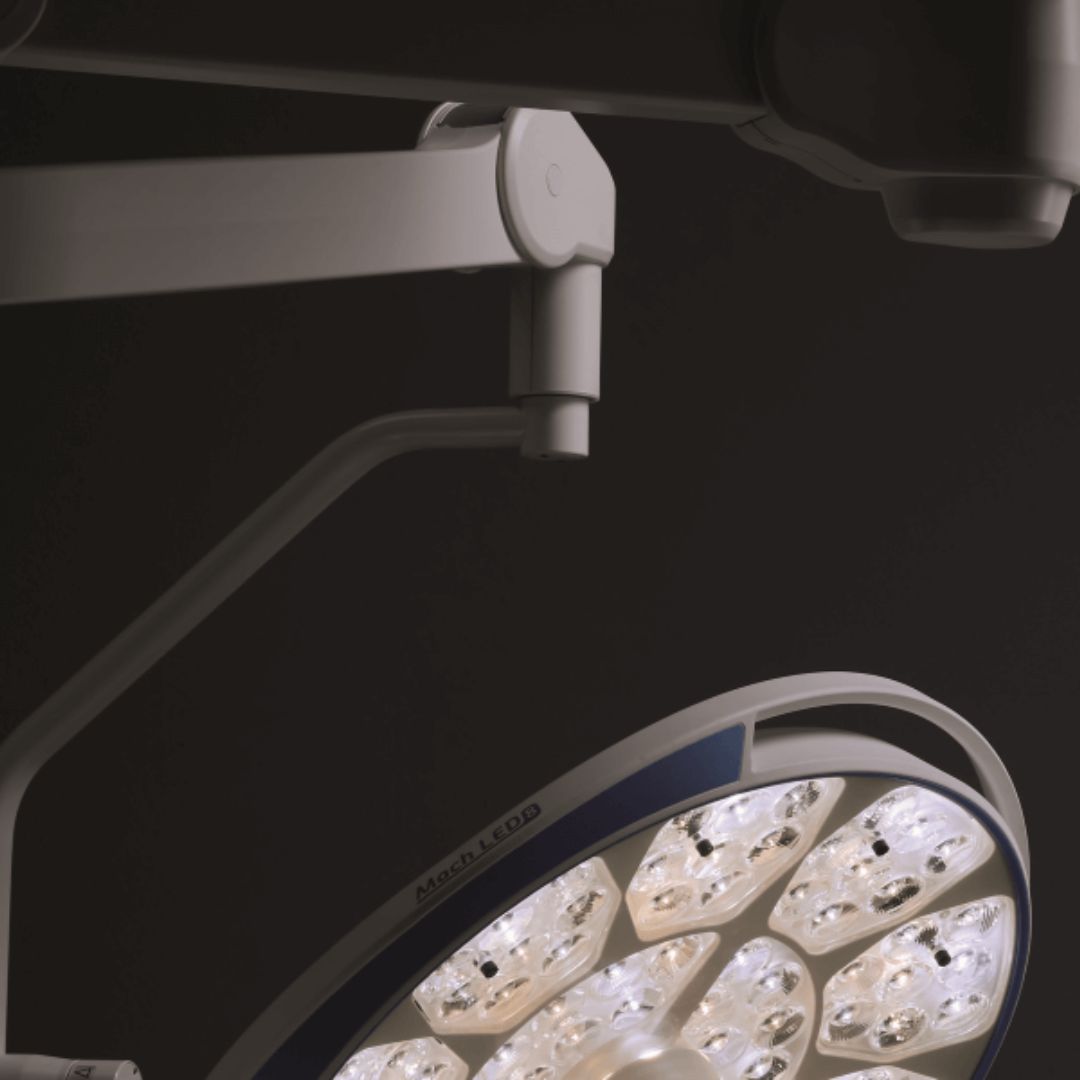

Dr. Mach LED 6MC Basic surgical lamp, 140,000 Lux at 1 m. Mounting to ceilings up to 3 m.

This state-of-the-art operating lamp allows for illumination of all types of surgical fields, whether superficial wounds or deep lesions. Its design includes an aluminum housing coated with antimicrobial materials and a circular panel of powerful LED lights that hardly generate heat during use. The lamp also integrates a removable, sterilizable handle for comfortably adjusting its height and a streamlined head to promote air circulation in air-conditioned operating rooms.

This version of the LED 6MC, unlike the standard model, does not have color temperature adjustment and always emits light at 4,250 K.

General Features
- State-of-the-art surgical lamp with high power LED light
- Aluminum housing with antimicrobial coating to prevent the proliferation of infectious agents
- Positioning handle that can be removed and sterilized 200 times
- Intuitive, comfortable, and easy to use operating interface
- Sophisticated design, with aerodynamic finishes to promote air circulation in air-conditioned spaces
- Electronic focus of the beam for high precision illumination
- Easy calibration of light intensity to adapt to the demands of the operation
- Endo mode with green light for internal surgeries
- Low heat generation during use
- Cascade lighting system to illuminate deep wounds
- Exceptionally reliable color reproduction
- Possibility to connect it with other interfaces and external systems (Storz, Bender, etc)
- Classified as a Class I medical product according to the MDR

Technical specifications
- Luminous density (at 1 m distance): 140,000 Lux
- Luminous field diameter (d10): 180 mm
- Luminous field diameter (d50): 103 mm
- Residual light intensity with one shadow: 50 %
- Residual light intensity with two shadows: 45 %
- Illumination depth at 20 %: 2,000 mm
- Illumination depth at 60 %: 1,050 mm
- Color reproduction index Ra: 98
- Color reproduction index R9: 99
- Color reproduction index R13: 99
- Lamp body diameter: 58 cm
- Focusable luminous field diameter: 18 - 30 cm
- Color temperature: 4,250 K
- Number of LEDs: 69
- Working distance: 70 - 160 cm
- Dimming range: 50 - 100 %
- Dimming levels: 5
- Power supply: 24 - 30 V DC
- Consumption: 66 W/2.7 A max.
- Input voltage: 100 - 240 V AC, 50/60 Hz
- Input current consumption: 5.8 A max.
- Output voltage: 28 V DC
- Output power: 190 W
- Luminous efficiency: 280 lm/W
- Radiation force at a distance of 1 m: 518 W/m2
- Maximum radiation force at a distance of 0.69 m: 723 W/m2
- Temperature increase in the upper zone: 0.5 °C
- Ee/Ec ratio: 3.56 (mW/m2)/lx
- Turbulence level: 17% (according to DIN 1946-4)
- Interference suppression: EN 55011 (CISPR 11), EN 60601-1-2 (IEC 60601-1-2)
- Protection type: I
- IP protection class (according to IEC 60529): IP 54 (lamp) and IP 20 (suspension system)
- Estimated life span: 10 years
- Estimated life of the LEDs: 60,000 h
- Lamp body weight (including accessories): 16.9 kg max.
- Operating temperature: from +5 °C to +40 °C
- Relative operating humidity: from 30% to 75%
- Operating pressure: from 700 hPa to 1060 hPa

Optional accessories (not included and with additional cost)
- Articulated version with cardans
- Increase in light intensity up to 160,000 Lux
- Modification of the dimming range (from 20 to 100 %)

Support: attachment to ceilings between 2.8 and 3 meters high

Includes TK 270 ceiling anchor ring (ref. 401415000270).

* Installation not included.

* Images may contain optional accessories not included in the price.
