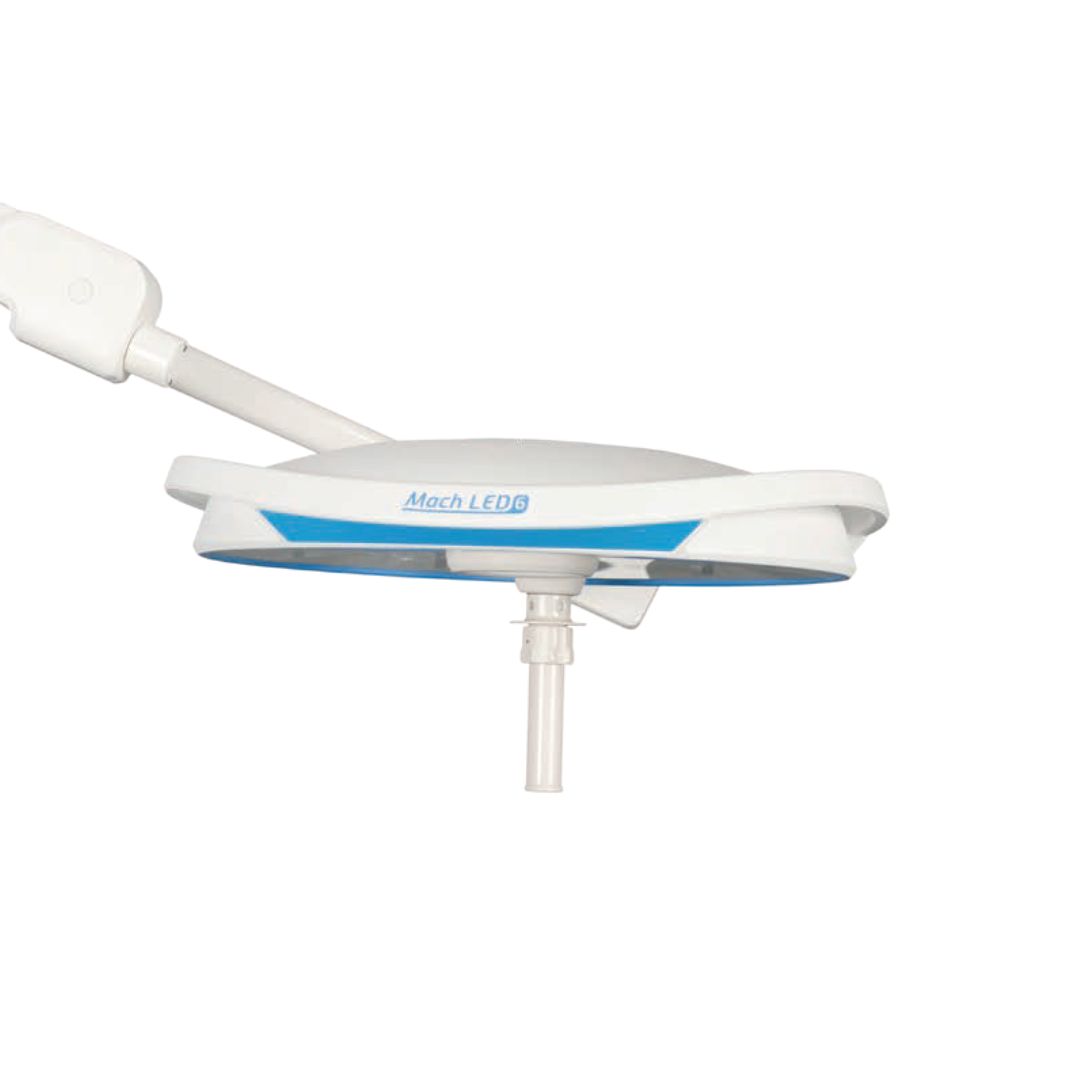

Dr. Mach LED 6MC surgical lamp, 140,000 Lux at 1 m. Wall mount

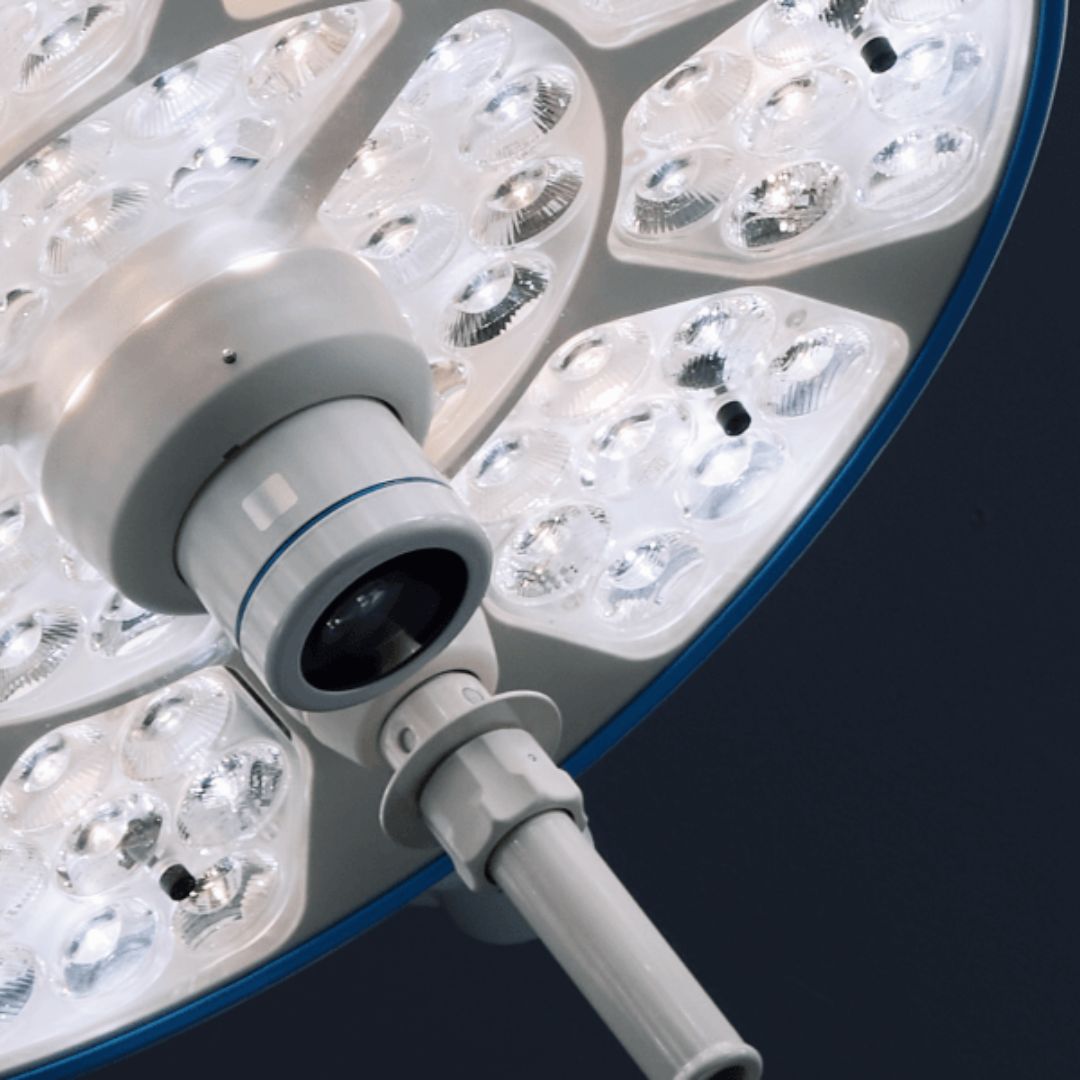

The LED 6MC lamp is a milestone in the field of operating room lighting for its practical design and the multiple features it offers to health professionals. It is made of highly durable aluminum and has been coated with antimicrobial materials to reduce the risk of cross-infection during use. It has a sterilizable handle to ensure patient safety and has an aerodynamic shape designed to promote ventilation in air-conditioned operating rooms. All this is accompanied by its powerful integrated spotlight of 69 LED lights, which illuminate the surgical field in a cascade and allow the beam of light to penetrate extremely deep wounds.

General characteristics
- High-power ergonomic lamp equipped with a state-of-the-art lighting system
- Aluminum housing coated with antimicrobial materials to prevent the proliferation of pathogens
- Sophisticated design, with aerodynamic shapes to promote the circulation of laminar flow in air-conditioned environments
- Asymmetric position handle sterilizable up to 200 times by autoclave cycles
- Electronic focus, with optimal precision
- Easy calibration of color temperature and light intensity

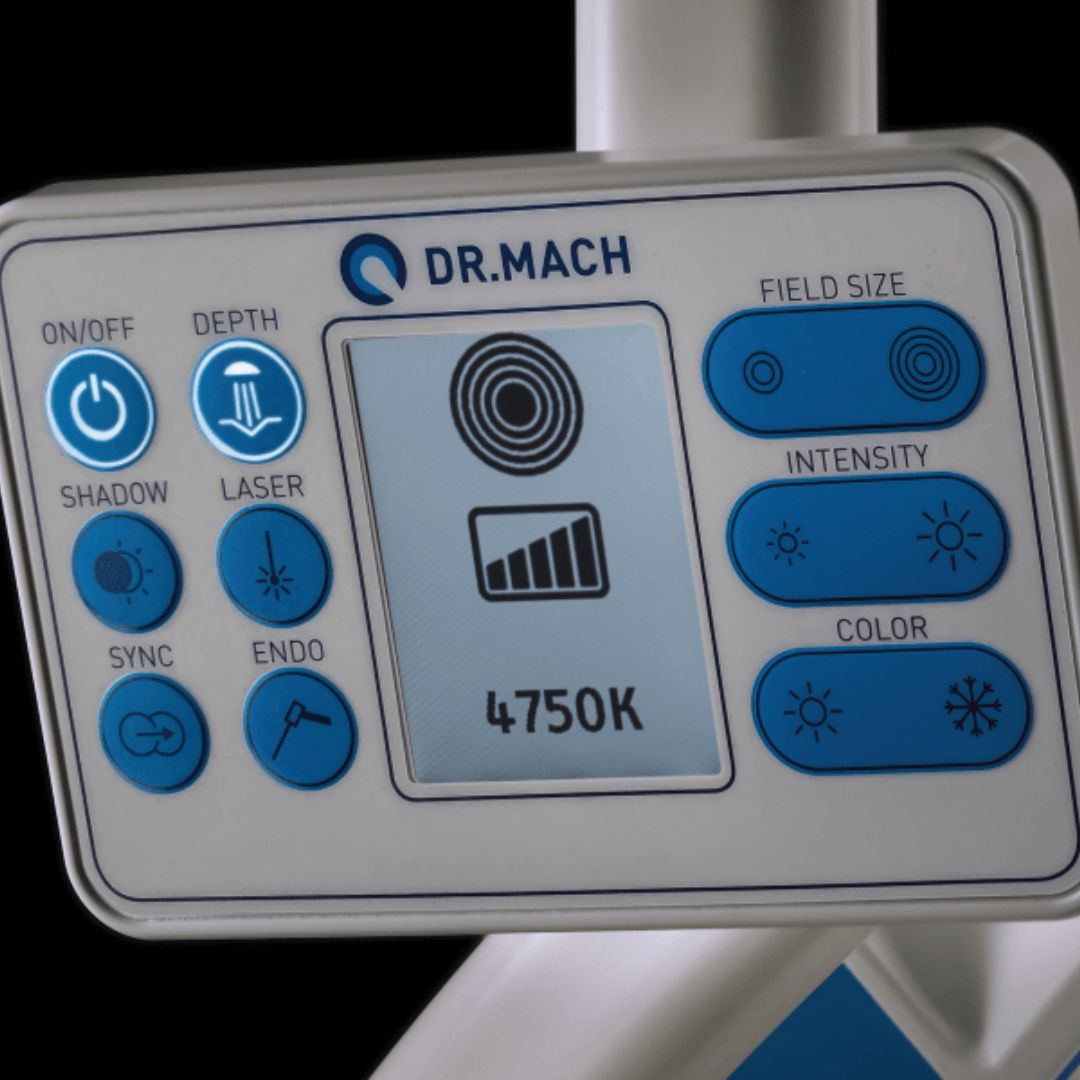

- Comfortable and easy to use, with intuitive keyboard and screen
- Endo mode with green light for internal surgeries
- Low heat generation for optimal functionality
- Equipped with a cascade lighting system, which allows working with different lenses to achieve vertical focusing, obtaining a better illuminated depth image
- High reliability and precision in color reproduction
- High connectivity, possibility of linking it with other interfaces and external connections (Storz, Bender, etc.)
- Classified as class I medical device according to the MDR

Technical specifications
- Luminous density (at 1 m distance): 140,000 Lux
- Luminous field diameter (d10): 180 mm
- Luminous field diameter (d50): 103 mm
- Residual light intensity with one shadow: 50 %
- Residual light intensity with two shadows: 45 %
- 20% illumination depth: 2,000 mm
- 60% illumination depth: 1,050 mm
- Color rendering index Ra: 98
- Color rendering index R9: 99
- Color rendering index R13: 99
- Diameter of the lamp body: 58 cm
- Diameter of focusable luminous field: 18 - 30 cm
- Color temperature: 3,750, 4,000, 4,250, 4,500 or 4,750 K
- Number of LEDs: 69
- Working distance: 70 - 160 cm
- Dimming range: 50 - 100 %
- Dimming levels: 5
- Power supply: 24 - 30 V DC
- Consumption: 66 W/2.7 A max.
- Input voltage: 100 - 240 V AC, 50/60 Hz
- Input current consumption: 5.8 A max.
- Output voltage: 28 V DC
- Output power: 190 W
- Luminous efficiency: 280 lm/W
- Radiation force at a distance of 1 m: 518 W/m2
- Maximum radiation force at a distance of 0.69 m: 723 W/m2
- Temperature increase in the upper area: 0.5 ºC
- Ee/Ec ratio: 3.56 (mW/m2)/lx
- Turbulence level: 17% (according to DIN 1946-4)
- Interference suppression: EN 55011 (CISPR 11), EN 60601-1-2 (IEC 60601-1-2)
- Protection type: I
- IP protection class (according to IEC 60529): IP 54
- Estimated life span: 10 years
- Estimated life of LEDs: 60,000 h
- Lamp body weight (including accessories): 16.9 kg max.
- Operating temperature: from +5 °C to +40 °C
- Operating relative humidity: from 30% to 75%
- Operating pressure: from 700 hPa to 1060 hPa

Optional accessories (not included and with additional cost)
- Built-in video camera
- Integrated laser pointer
- Automatic shadow compensation
- Mechanical adjustment of the luminous field
- Increase in light intensity up to 160,000 Lux
- Modification of the color temperature range (from 3,500 to 5,500 K; 4,250 K not modifiable)
- Modification of the dimming range (from 20 to 100 %)

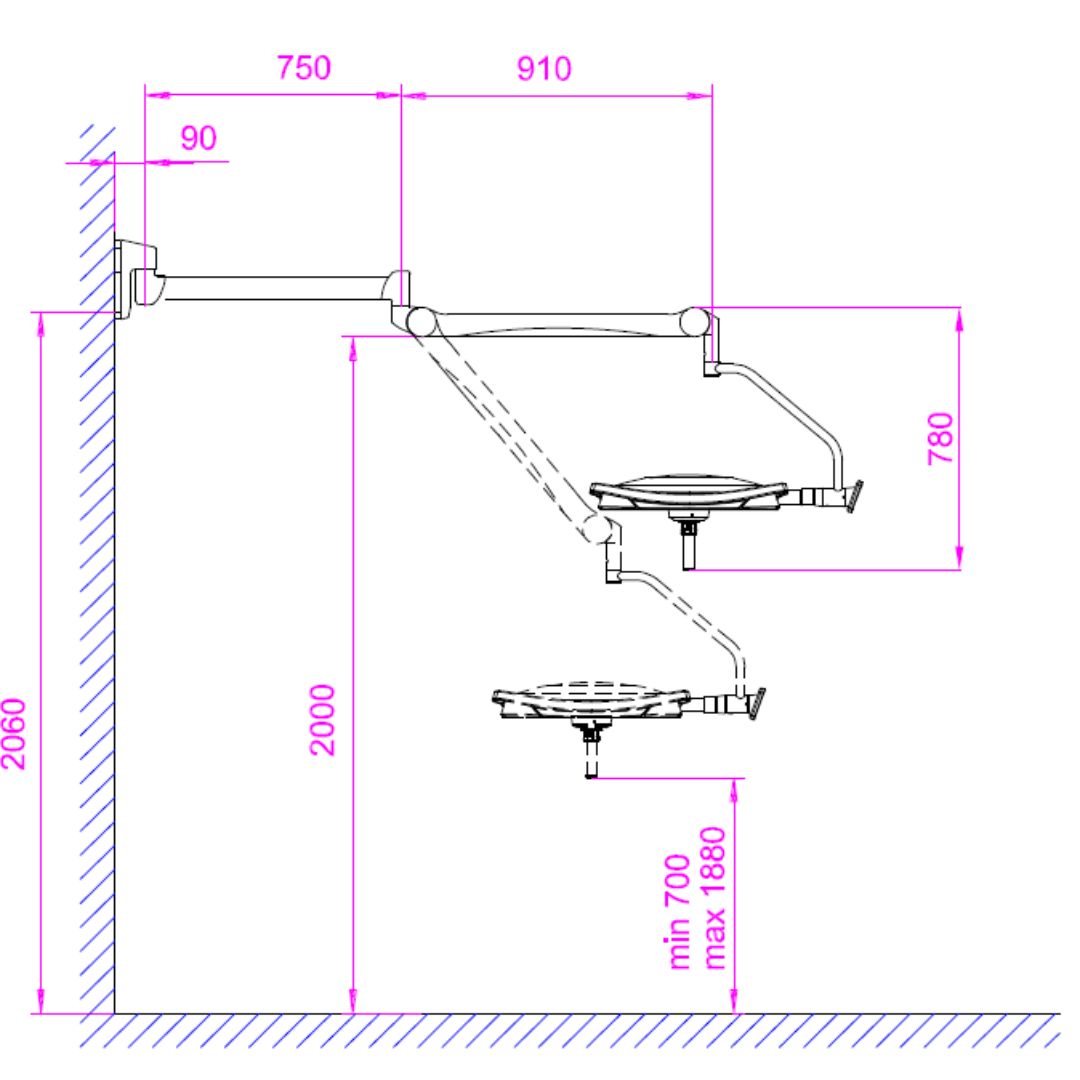

Support: wall mount

* Installation not included.

* Images may contain optional accessories not included in the price.
