Dino-Lite Edge Digital Microscope USB, 5MP, 700-900x, Aluminum, AMR, Coaxial Illumination
Dino-Lite Edge Digital Microscope USB, 5MP, 700-900x, Aluminum, AMR, coaxial illumination
Personal advice
Description

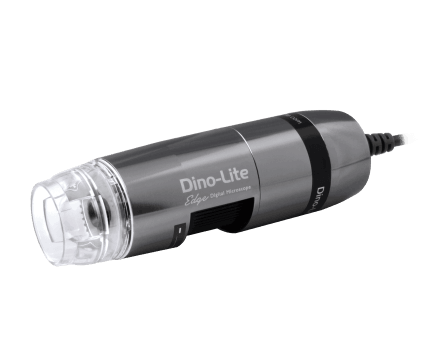

The Dino-Lite digital microscope is a 5MP device from the Dino-Lite Edge series, which offers a magnification range from 700x to 900x and has built-in coaxial illumination. Thanks to the flexible LED control (FLC), this model allows to alternate or combine coaxial illumination and clear field illumination.
Coaxial illumination is ideal for revealing details that are difficult to see with normal light, being especially useful for the inspection of solar panels, microchips and other microelectronic components. The microscope automatically adjusts the magnification in the Dino-Lite software, which is included.
To ensure high precision when focusing at high magnifications, it is recommended to use a high precision stand. The Dino-Lite RK-10A is an excellent accessory, made of stainless steel and lightweight aluminum, which provides a fine and precise focus adjustment, in addition to being firm and stable.
Technical specifications:
Illumination:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut-off filter >650 nm
Diffuser available: No
Emission filter: No
Polarizer: No
Optics:
Magnification: 700-900x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 5 Megapixel (2592x1944)
Maximum frame rate: 30 fps (max 20fps video recording)
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Housing material: Metal housing
Dimensions: 10.7cm (L) x 3.2cm (D)
Weight: 139 gr
Cable length: 1.8m
Features:
Special feature: Automatic magnification reading (AMR), Flexible LED control (FLC), Coaxial illumination
Measurement: Yes
Calibration: Yes
Microtouch Sensor: Yes
ESD safe: Yes
Information:
Package contents: Microscope, carrying case, power adapter, front cover box, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Coaxial illumination is ideal for revealing details that are difficult to see with normal light, being especially useful for the inspection of solar panels, microchips and other microelectronic components. The microscope automatically adjusts the magnification in the Dino-Lite software, which is included.
To ensure high precision when focusing at high magnifications, it is recommended to use a high precision stand. The Dino-Lite RK-10A is an excellent accessory, made of stainless steel and lightweight aluminum, which provides a fine and precise focus adjustment, in addition to being firm and stable.
Technical specifications:
Illumination:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut-off filter >650 nm
Diffuser available: No
Emission filter: No
Polarizer: No
Optics:
Magnification: 700-900x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 5 Megapixel (2592x1944)
Maximum frame rate: 30 fps (max 20fps video recording)
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Housing material: Metal housing
Dimensions: 10.7cm (L) x 3.2cm (D)
Weight: 139 gr
Cable length: 1.8m
Features:
Special feature: Automatic magnification reading (AMR), Flexible LED control (FLC), Coaxial illumination
Measurement: Yes
Calibration: Yes
Microtouch Sensor: Yes
ESD safe: Yes
Information:
Package contents: Microscope, carrying case, power adapter, front cover box, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
