Reference. 1129AM7915MZT

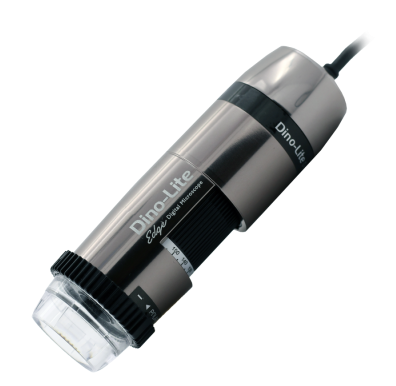

Dino-Lite Edge Digital Microscope, USB, 5MP, 20~220x, Polarized, Aluminum, FLC/AMR/EDOF/EDR
Dino-Lite Edge Digital Microscope, USB, 5MP, 20~220x, Polarized, Aluminum, FLC/AMR/EDOF/EDR
Personal advice
Description
With the Extended Dynamic Range (EDR) function, details of the darkest or brightest areas of the object can be revealed by accumulating images at different exposure levels. The Extended Depth of Field (EDOF) function automatically accumulates images at different focus levels to improve the depth of field on rough or uneven surfaces. Thanks to the integrated magnification reading (AMR), measurements can be easily and quickly performed. Thanks to the integrated polarization filter, this model is ideal when working with shiny or reflective objects, such as metal, plastic, glass, jewellery, electronic components, etc.
Technical specifications:
Lighting:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics:
Magnification 10-220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 5 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Case material: Metal case
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 135g
Cable length: 1.8m
Features:
Special function: Automatic magnification reading (AMR), Flexible LED control (FLC).
Measurement: Yes
Calibration: Yes
Microtouch Sensor: Yes
ESD safe: Yes
Information:
Package content: Microscope, carrying bag, software CD, calibration, lens, user manual, N3C-O- Open cap, N3C-CClosed Cap, N3C-D- Diffuser Cap, N3C- Extension Cap, N3C-L- Long Cap, N3C-S- Side light cap
Warranty information: 2-year European warranty
Regulatory approval: CE, FCC, ROHS
Technical specifications:
Lighting:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics:
Magnification 10-220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 5 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Case material: Metal case
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 135g
Cable length: 1.8m
Features:
Special function: Automatic magnification reading (AMR), Flexible LED control (FLC).
Measurement: Yes
Calibration: Yes
Microtouch Sensor: Yes
ESD safe: Yes
Information:
Package content: Microscope, carrying bag, software CD, calibration, lens, user manual, N3C-O- Open cap, N3C-CClosed Cap, N3C-D- Diffuser Cap, N3C- Extension Cap, N3C-L- Long Cap, N3C-S- Side light cap
Warranty information: 2-year European warranty
Regulatory approval: CE, FCC, ROHS
