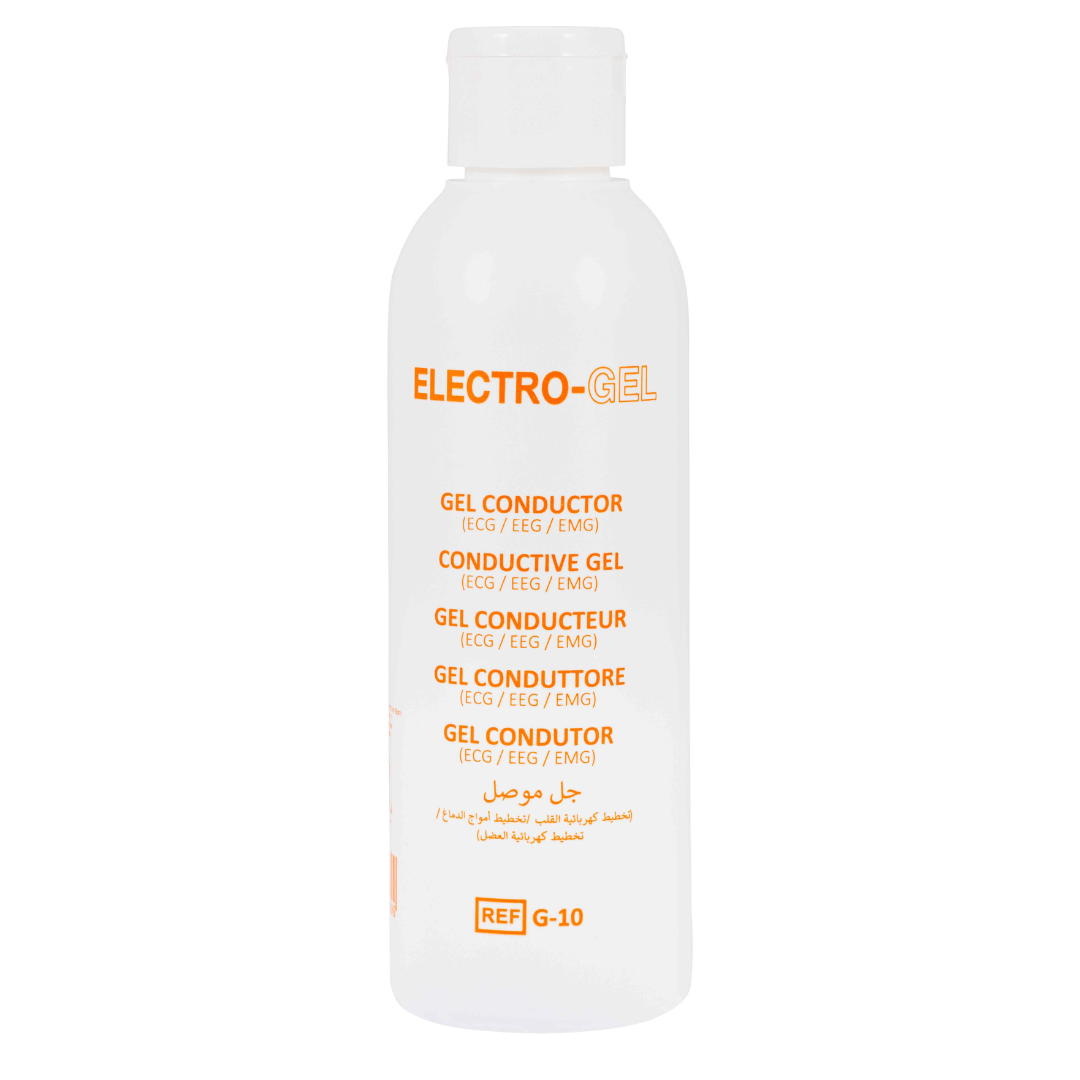

Conductive gel for ECG and TENS, 250 ml bottle

This conductive gel has been specifically designed to be used with electrocardiogram equipment and TENS electrostimulation devices. Its extraordinary composition, which incorporates only cosmetic or pharmaceutical grade raw materials, transmits electrical impulses without irritating tissues and without damaging the equipment involved in the procedure.

General Features
- Highly conductive water-soluble gel
- Suitable for short and long term monitoring
- Formulated with ingredients that do not irritate or grease the skin
- Viscous composition of easy and homogeneous extension
- Free of corrosive compounds that damage terminals or contacts
- Production according to ISO 13485 standard
- Classified as a Class I product according to Regulation (EU) 2017/745

Technical Specifications
- Composition: cosmetic or pharmaceutical grade raw materials
- Organoleptic characteristics: transparent viscous gel of greenish blue color with smell to its raw materials (lacks added perfume)
- Viscosity (22°C): 220,000 - 360,000 mPa·s
- pH: 6.7 - 7.5
- Density (22°C): 1 - 1.05 g/ml
- Packaging: 250 ml bottle with dosing cap
- Shelf life: 3 years from the date of manufacture

Electrical Properties (ANSI/AAMI EC12)
- Residual voltage: < 100mV
- AC Impedance 10Hz: < 2000Ω
- Defibrillation overload recovery: < 100 mV (ΔV), < 1 mV/s (ΔVt)
- AC Impedance 10Hz after defibrillation: < 100 mV
- Combined residual instability and internal noise: < 150 μV
- Tolerance current trend at 8h: < 100 mV

Microbiological Properties
- Total aerobes: < 10 cfu/ml
- Molds and yeasts: < 10 cfu/ml
- Pathogens: (Staphylococcus aureus, Pseudomonas aeruginosa, Candida albicans, Eschericia coli): absence

Biocompatibility
- ISO 10993-5: non-cytotoxic
- ISO 10993-10: non-sensitizing
- ISO 10993-10: negative intracutaneous irritation test
