CHISON ECO1 Expert ultrasound machine for veterinary use. 1 probe to choose from.

Name: CHISON ECO1 Expert ultrasound machine for veterinary use. 1 probe to choose from.
Brand: CHISON
Price: 3990.00 EUR
Availability: InStock

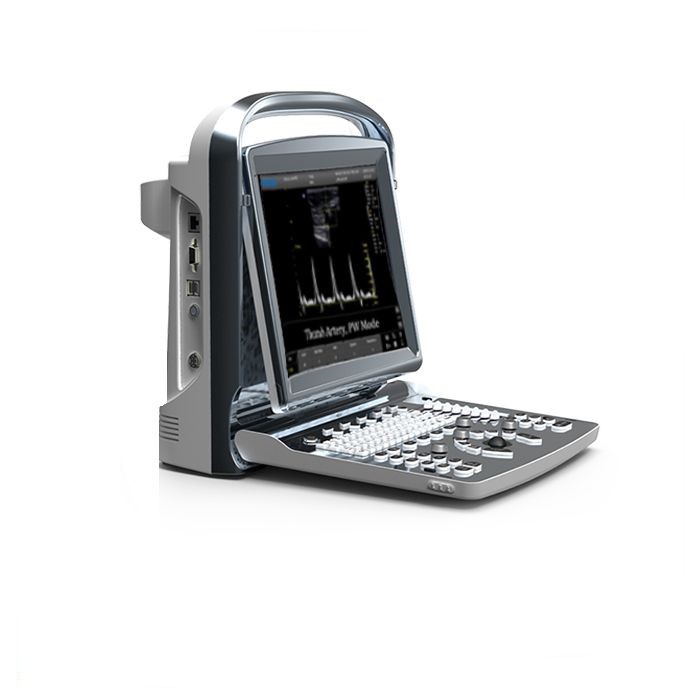

The ECO1 Expert from Chison is a powerful portable ultrasound machine that guarantees good image quality at a very affordable price. Lightweight and easy to use, this device is perfect for increasing comfort in veterinary clinics as it can be transported very easily. In addition, it has a high-quality design and features that make it a practical ultrasound machine.

Personal advice

Probe

3.990,00€ (4.827,90€ VAT INCLUDED)

Secure payment

Product in stock. Estimated delivery 48-72 hours.

Inquiry about the product

Description

The Chison ECO1 Expert ultrasound machine is a portable Doppler system perfect for daily use in veterinary clinics, as well as for being transported to farms and performing basic diagnostics on all types of animals. This allows for an optimized visit for all types of situations as it has a state-of-the-art LED screen and ultra-bright image definition. Its use is easy and intuitive as it has 6 quick function keys that guarantee a fast workflow, these allow for a reliable diagnosis in the shortest possible time.

Product details:
- 12-inch high-definition LED screen - B/W.
- Screen tiltable up to 30°.
- Image display mode: B, B/B, 4B, B/M, PW, multifrequency images.
- 8G Memory.
- Number of USB ports: 3.
- It has the following ports:
· Ethernet port.
· Video output port.
· VGA port.
· Foot switch port.
- Full screen mode.
- PIP zoom and panoramic zoom.
- Cine memory capacity 256 frames/10s.
- CINE Review: automatic, manual (automatic review segment can be set) for 2D, M and PW images.
- Multiple image formats: BMP, JPG, DCM, CIN, AVI.
- Connection with PC printer.

- 2 probe slots.

- Lithium-ion battery (approximate operating time of 2.5 hours with fully charged battery).
- i-Image.
- THI (tissue image balance system).
- Background noise reduction and image enhancement (SRA).
- PW (doppler option to detect blood flow speed).

Keyboard functionalities:
- Reclinable control panel and alphanumeric keyboard.
- Backlit keyboard for improved visibility even in low light conditions.
- Indicator lights for activated keys.
- 8 TGC sliding buttons for easy adjustment.
- Direct access button for quick adjustment.
- Clean and clear keyboard design, which facilitates quick and automatic use by the user.

Technical specifications:
- Software: DICOM 3.0.
- Dimensions: 335 x 155 x 350 mm (length x width x height).
- Weight without cable: 6 kg.
- Power voltage: AC 100-240V.
- Power frequency: 50 - 60 Hz.
- Power consumption: 150 VA.

Probes to choose:
• Linear probe:
- Average frequency: 7.5 MHz.
- Frequency range: 5.3 - 10.0 MHz.
• Convex probe:
- Average frequency. 3.5 MHz.
- Frequency range: 2.5 - 5.0 MHz.

Regulations and certifications:
- Complies with the CE Medical Product certificate regulation.
- IEC 60601-1 Electrical medical equipment.
- IEC 60601-1-1 Electrical medical equipment.
- IEC 60601-1-2 CElectromagnetic compatibility.
- IEC 60601-1-4 Programmable medical electrical systems.
- IEC 60601-2-37.
