Reference. 94226EBIT60VXX
CHISON EBit 60 ultrasound for veterinary use. 1 probe to choose.

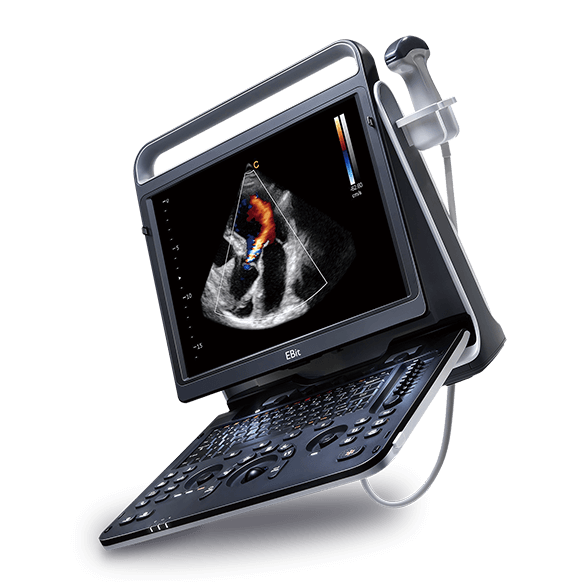

The EBit 60 from Chison is an innovative ultrasound machine with a color Doppler system and complete equipment, specifically designed to perform complex clinical examinations in veterinary medicine. It is currently considered one of the best portable ultrasounds in its class thanks to its imaging technology, its precise and intuitive workflow, and its ergonomics and design to observe any part of the animal's body.
Personal advice
Description
This powerful and affordable ultrasound machine provides an accurate and intuitive workflow, as it features advanced technology, an ultra-portable ultrasound system, perfect for use in veterinary clinics, and an ergonomic design that is also environmentally friendly.
The EBit 60 has a multitude of features that make it useful and comfortable, among which the following stand out:
• Elastography: this device displays tissue stiffness in real time, helping veterinarians as it provides additional diagnostic information when studying organs such as the liver or breasts.
• Harmonic Imaging FHI: depending on the size and weight of the animal, different transmission and reception modes are used, improving resolution without loss of penetration.
• Q-beam: to ensure greater efficiency in diagnosis, EBit 60, doubles the volume of the signal, increasing image resolution and producing higher frame rates, being very helpful when capturing images of moving organs.
• Q-flow: depending on the tissues analyzed, the system automatically maximizes noise sensitivity and color.
• X-contrast: ideal for adjusting contrast resolution to three levels with a single touch.
• 4D: this feature is its latest innovation, and that is that this ultrasound machine has a powerful image engine and a mobile virtual light source that generate a perspective of the observed part in 4 dimensions and in real time (for this it is necessary to acquire the 4D probe and the software license, at an additional cost).
Product details:
- High resolution 15-inch LED screen standard configuration.
- The screen is tiltable from 0° to 30°.
- 2 active probe ports.
- Image display mode: B, B/M, M, 2B, 4B, 2D steer, CFM, CPA, DPD, PW, Triplex, Trapezoidal and Super Needle.
- Doppler: pulsed / color / power.
- Power Doppler flow images.
- Integrated hard disk of ≥500G.
- Removable battery with 120 minutes of active mode duration.
- Number of USB ports: 4.

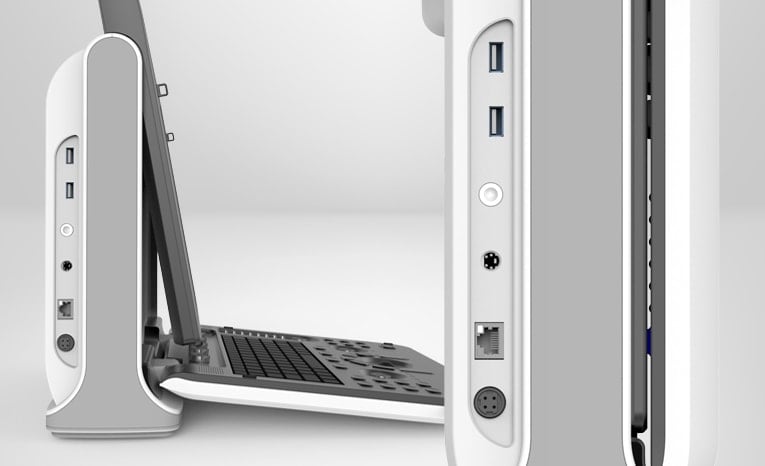

- It has the following ports:
· S-Video output port.
· VGA port.
· DVI port.
· ECG port.
- Foot switch.
- Remote control.
- General / clinical measurement package.
- Multilingual menu.
- Includes an image review system.
- Includes a patient information management system (files).
- Includes a report system.
- AIO (Automatic image optimization).
- Smart zoom.
- Background noise reduction and image enhancement (SRA).
- Q-image software package.
- It is compatible with numerous types of probes.

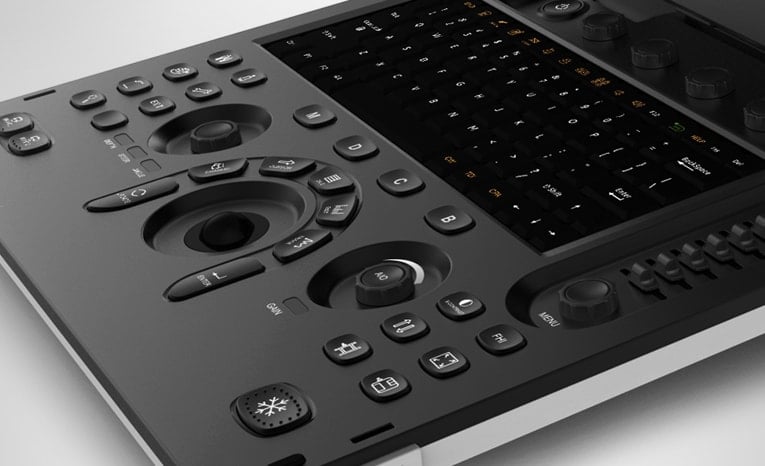

Operation panel:
- Control panel.
- Alphanumeric keyboard.
- 8 TGC sliders, for better adjustment.
- Interactive backlit keys.
- High color LCD resolution.
- Integrated speaker with adjustable volume.
Technical specifications:
- Software: DICOM 3.0.
- Dimensions: 358 x 125 x 399 mm (length x width x height).
- Weight without cable: 7.8 kg.
- Power supply voltage: AC 100-240V.
- Power supply frequency: 50 - 60 Hz.
- Power consumption: 150 VA.
Probes to choose from:
• Linear probe:
- Average frequency: 7.5 MHz.
- Frequency range: 5.3 - 10.0 MHz.
• Convex probe:
- Average frequency. 3.5 MHz.
- Frequency range: 2.5 - 5.0 MHz.
Regulations and certifications:
- Complies with CE Medical Device regulatory certificate.
*Images may contain accessories not included in the price.
The EBit 60 has a multitude of features that make it useful and comfortable, among which the following stand out:
• Elastography: this device displays tissue stiffness in real time, helping veterinarians as it provides additional diagnostic information when studying organs such as the liver or breasts.
• Harmonic Imaging FHI: depending on the size and weight of the animal, different transmission and reception modes are used, improving resolution without loss of penetration.
• Q-beam: to ensure greater efficiency in diagnosis, EBit 60, doubles the volume of the signal, increasing image resolution and producing higher frame rates, being very helpful when capturing images of moving organs.
• Q-flow: depending on the tissues analyzed, the system automatically maximizes noise sensitivity and color.
• X-contrast: ideal for adjusting contrast resolution to three levels with a single touch.
• 4D: this feature is its latest innovation, and that is that this ultrasound machine has a powerful image engine and a mobile virtual light source that generate a perspective of the observed part in 4 dimensions and in real time (for this it is necessary to acquire the 4D probe and the software license, at an additional cost).
Product details:
- High resolution 15-inch LED screen standard configuration.
- The screen is tiltable from 0° to 30°.
- 2 active probe ports.
- Image display mode: B, B/M, M, 2B, 4B, 2D steer, CFM, CPA, DPD, PW, Triplex, Trapezoidal and Super Needle.
- Doppler: pulsed / color / power.
- Power Doppler flow images.
- Integrated hard disk of ≥500G.
- Removable battery with 120 minutes of active mode duration.
- Number of USB ports: 4.
- It has the following ports:
· S-Video output port.
· VGA port.
· DVI port.
· ECG port.
- Foot switch.
- Remote control.
- General / clinical measurement package.
- Multilingual menu.
- Includes an image review system.
- Includes a patient information management system (files).
- Includes a report system.
- AIO (Automatic image optimization).
- Smart zoom.
- Background noise reduction and image enhancement (SRA).
- Q-image software package.
- It is compatible with numerous types of probes.
Operation panel:
- Control panel.
- Alphanumeric keyboard.
- 8 TGC sliders, for better adjustment.
- Interactive backlit keys.
- High color LCD resolution.
- Integrated speaker with adjustable volume.
Technical specifications:
- Software: DICOM 3.0.
- Dimensions: 358 x 125 x 399 mm (length x width x height).
- Weight without cable: 7.8 kg.
- Power supply voltage: AC 100-240V.
- Power supply frequency: 50 - 60 Hz.
- Power consumption: 150 VA.
Probes to choose from:
• Linear probe:
- Average frequency: 7.5 MHz.
- Frequency range: 5.3 - 10.0 MHz.
• Convex probe:
- Average frequency. 3.5 MHz.
- Frequency range: 2.5 - 5.0 MHz.
Regulations and certifications:
- Complies with CE Medical Device regulatory certificate.
*Images may contain accessories not included in the price.
