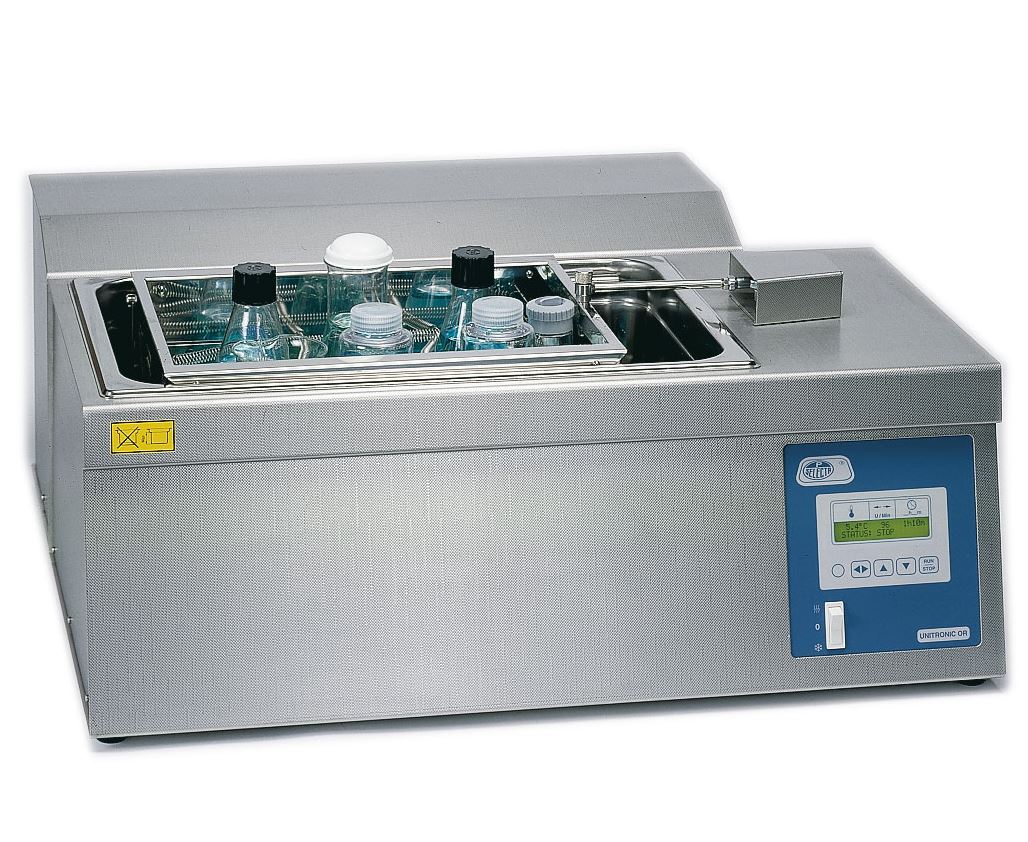

Water bath with agitation and cooling, 27L capacity

Unitronic Vaiven-C water bath with a capacity of 27 L designed with cooling and agitation of the adjustable mobile tray from 10 to 100 oscillations per minute, with a selectable travel range between 32 and 46 mm.

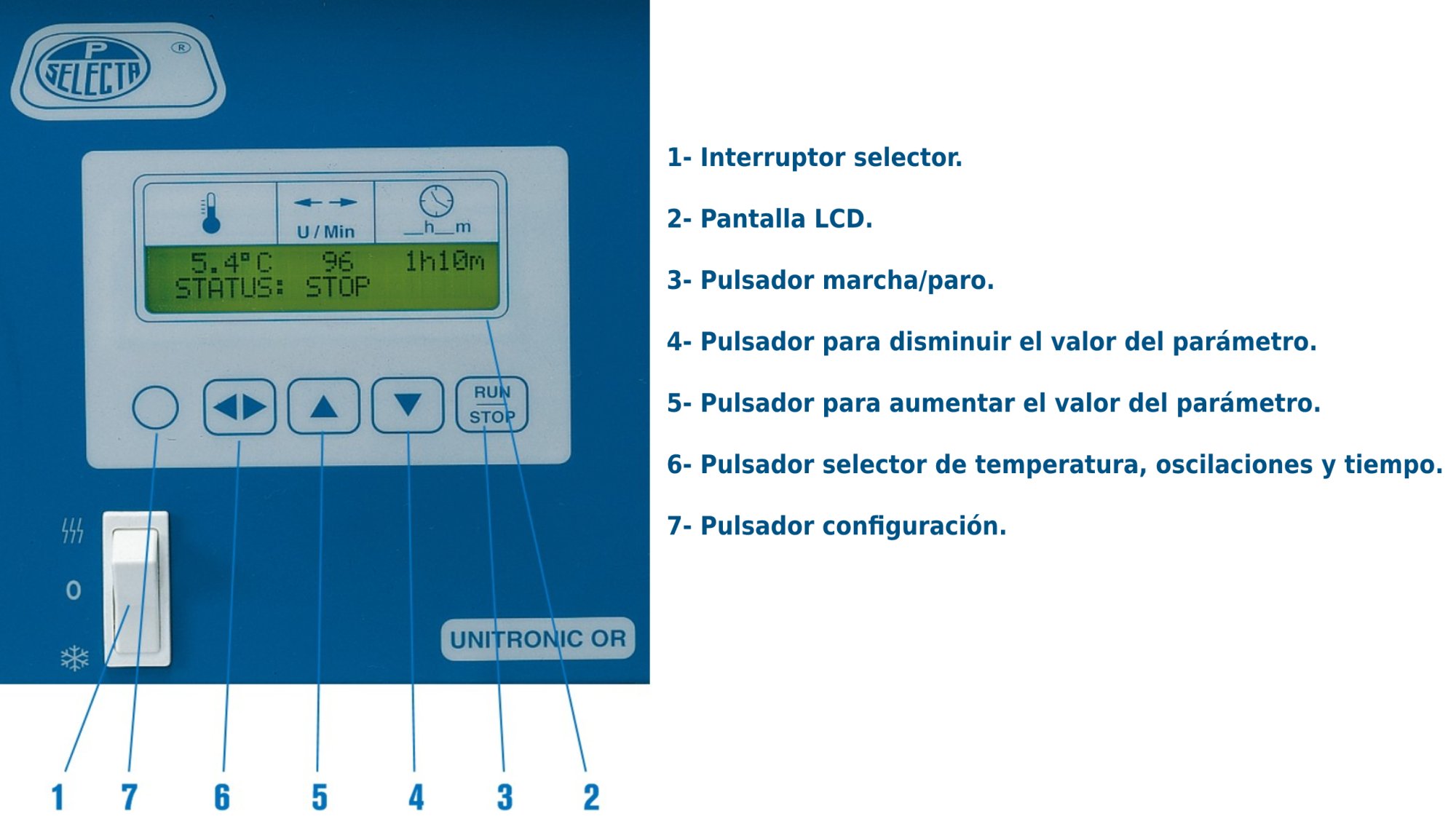

Developed with an LCD screen that displays the following parameters.
- Temperature, oscillations and time.
- Alarms: probe failure and temperature.
- Settings: °C or °F, calibration and working limits.

Features:
- Designed for adjustable temperatures from 0 to 99.9 ºC.
- For added safety, it has thermostat protection in case of overheating or lack of liquid with a temperature limiting adjustment and manual reset located at the rear.
- Developed with a microprocessor with selector and digital reading of temperature, time and speed.
- It has an RS-232 output for reading and printing the different parameters by computer.
- It includes a drain valve.
- Hermatic compressor group mounted on an anti-vibration coupling with a ventilated condenser.
- AISI 304 stainless steel rack incorporated in the mobile tray, with tension springs that allow all types of flasks, jars or racks to be held.
- Inner tray stamped in AISI 304 stainless steel and outer furniture in AISI 304 stainless steel.

Certificates: meets the requirements of the DIN EN 12877-2:1997-08 standard.

Technical specifications:
- Capacity: 27 L.
- Stability: ±0.05 ºC.
- Homogeneity: ±0.1 ºC.
- Setpoint error: ±1 ºC.
- Resolution: 0.1° ºC.
- Temperature sensor: Pt 100 resistance thermometer.
- Bath height: 18 cm.
- Bath width: 48 cm.
- Bath depth: 29 cm.
- Mobile tray height: 17 cm.
- Mobile tray width: 35 cm.
- Mobile tray depth: 24 cm.
- External height: 30 cm.
- External width: 74 cm.
- External depth: 63.5 cm.
- Consumption: 1750 W.
- Weight: 43 kg.
