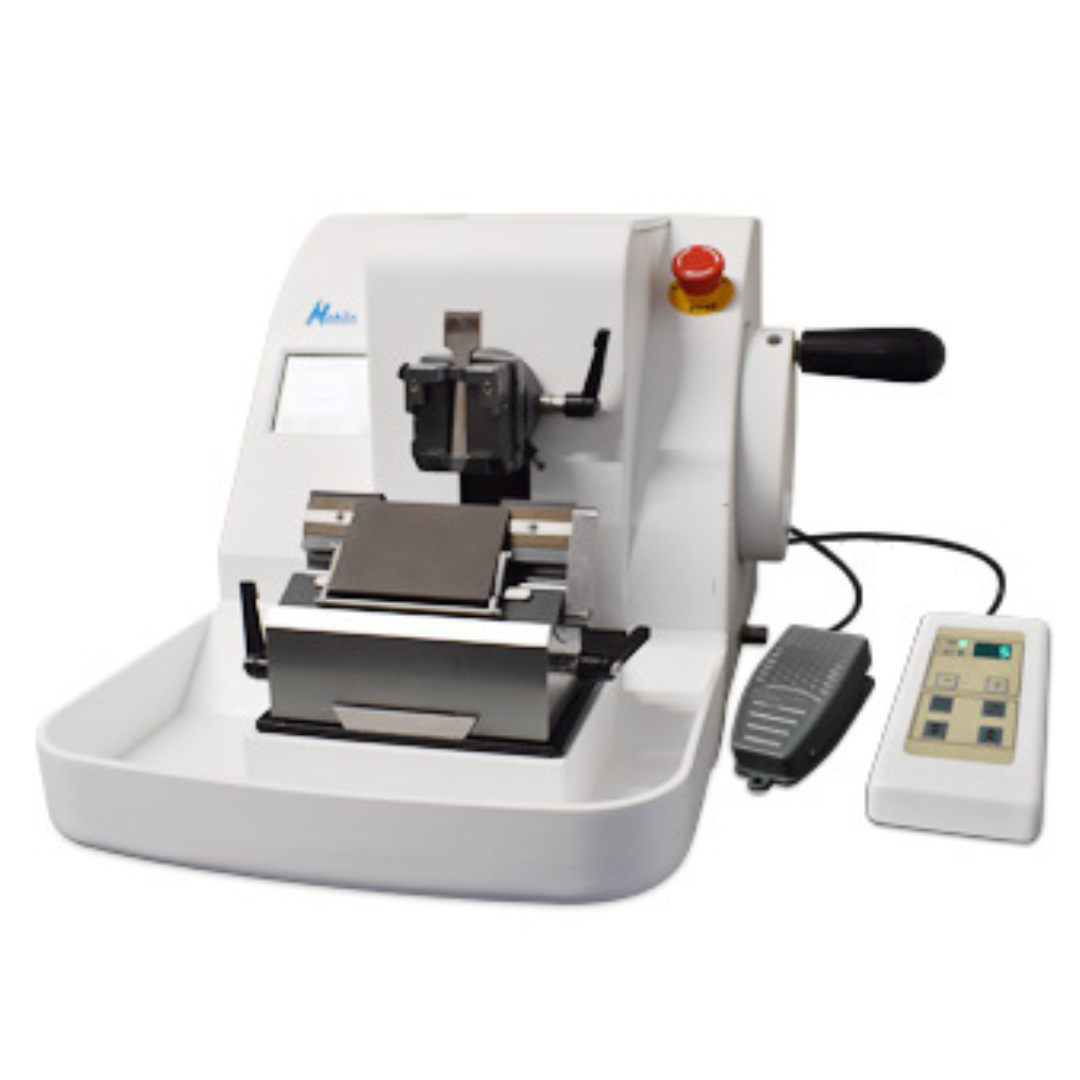

Automatic rotation microtome

Nahita's automatic microtome is a milestone in the field of histology due to its extraordinary design and multiple features. Equipped with a cutting system that can be operated manually or automatically, it is capable of making micrometer cuts with unparalleled precision and efficiency, obtaining excellent results for tissue research.

General Features
- Durable and easy to clean design, ideal for demanding professional environments
- Includes a large waste collection surface and a top tray for the material
- Operates through an integrated control interface with an easy-to-use touchscreen
- The sample's advance and retreat is fully motorized, with an alarm when the end is reached
- The cut can be triggered by a manual wheel, touchscreen, remote control, or pedal
- Incorporates a blade holder for disposable blades with a folding protector to guard the edge
- Has a system to lock the manual wheel in any direction
- Comes with a button for automatic stop in case of emergency
- Has a protection system against motor overload
- The acquisition of the equipment comes with a standard sample clamp and a universal cassette clamp included

Technical Specifications
- Section modes: manual and automatic
- Cutting speed: 0 - 300 mm/s
- Cutting thickness: 0.5 - 100 μm
- Cutting adjustment in increments of 0.5 μm: 0.5 - 5 μm
- Cutting adjustment in increments of 1 μm: 5 - 20 μm
- Cutting adjustment in increments of 5 μm: 20 - 60 μm
- Cutting adjustment in increments of 10 μm: 60 - 100 μm
- Rough thickness: 5 - 600 μm
- Rough adjustment in increments of 5 μm: 5 - 10 μm
- Rough adjustment in increments of 10 μm: 10 - 100 μm
- Rough adjustment in increments of 20 μm: 100 - 200 μm
- Rough adjustment in increments of 50 μm: 200 - 600 μm
- Horizontal sample displacement: 20 mm
- Vertical sample displacement: 60 mm
- Sample advance speed: 1250 μm/s
- Precision: ± 5%
- Maximum cutting area: 50 x 45 mm
- Blade orientation angle: 0 - 14º
- Sample orientation: 8º (X-Y axes); 360º rotating
- Dimensions: 500 x 320 x 500 mm
- Weight: 32 kg
- Power supply: 220 V, 50/60 Hz

Certificates and regulations
- EN 60601-1:2006+A12:2014
- EN 61326-1:2013
- 2014/35/EU
- 2014/30/EU
