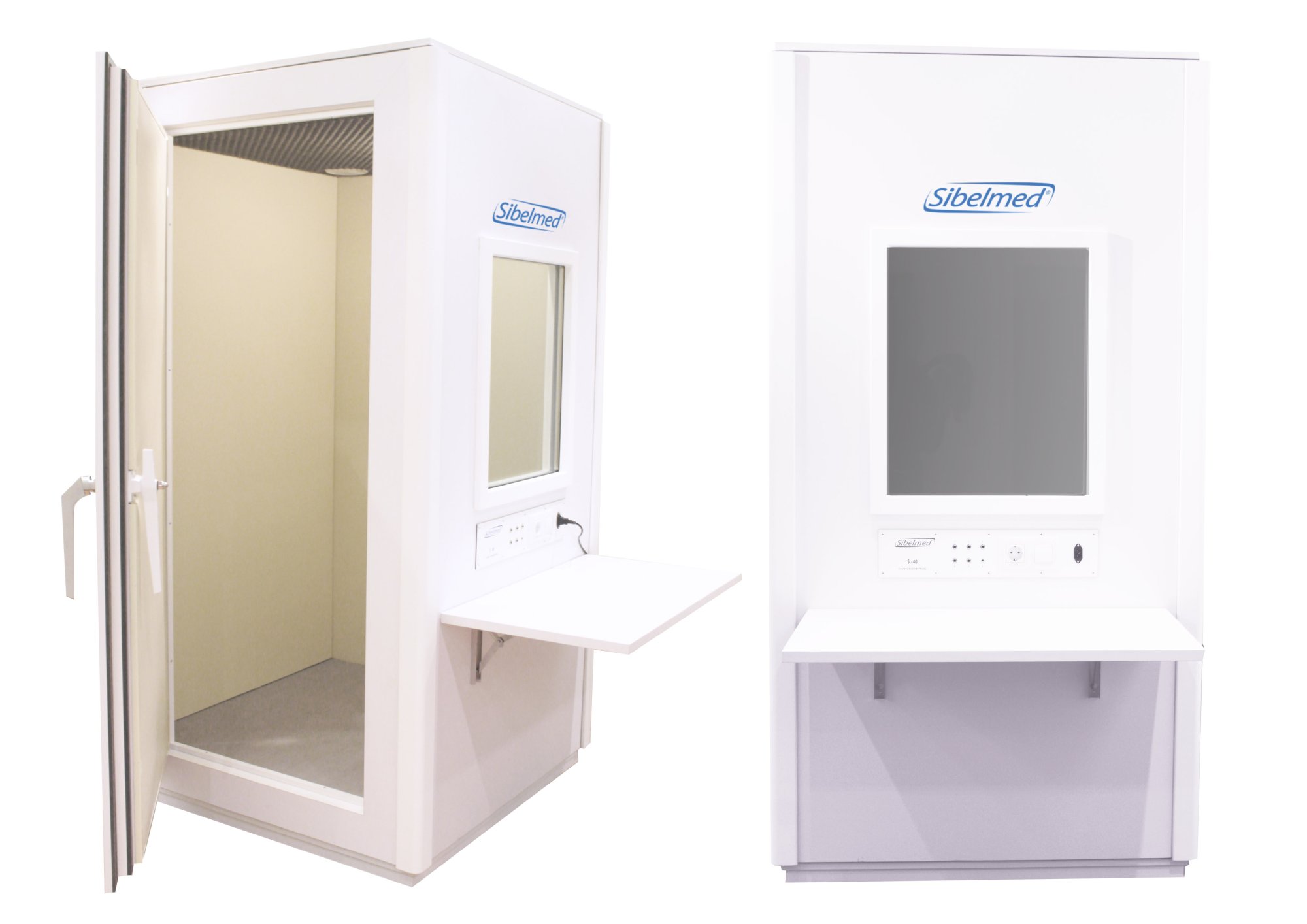

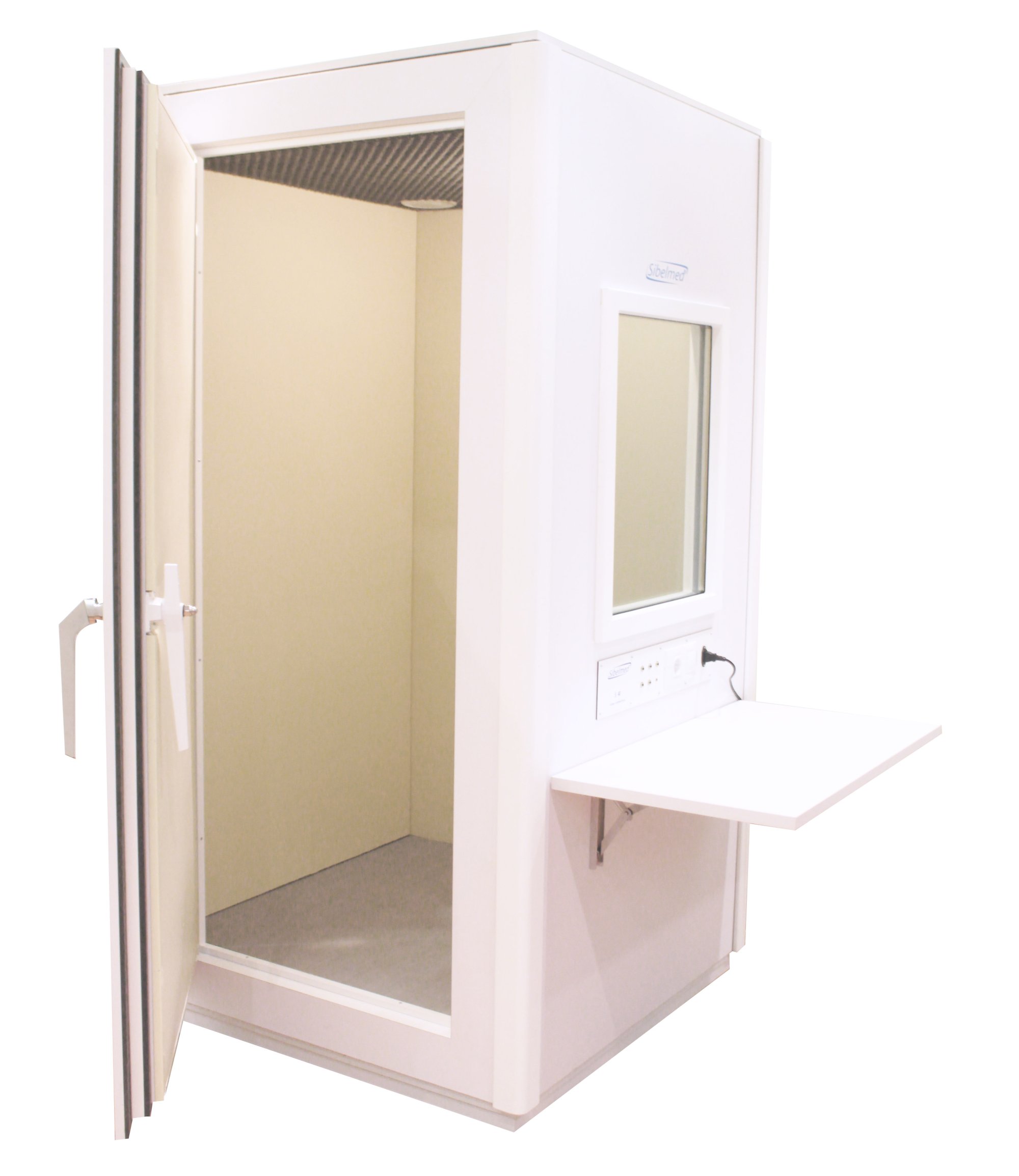

S40 B Audiometry Booth. (110 X 110 X 215 cm)

The soundproof S40 cabins have been designed with innovative acoustic insulation materials that allow the weight to be reduced while achieving a high level of insulation, aesthetic beauty, and functionality.

These cabins consist of access doors with locks, double-glazed windows that allow visibility between patient and operator, pleasant lighting, and necessary connections to connect an audiometer with its accessories. They can be adapted to all audiometers on the market, including computerized ones.

Their exterior consists of washable panels and their illuminated interior has an elegant and comfortable appearance.

Their design allows easy and quick assembly.

Dimensions
•External Cabin cm.:110x110x215
•Internal Cabin cm.: 97x97x192
•External door cm.: 79x185
•Internal door frame cm.: 71x177
•Window cm.: 45x54

Characteristics
•Global attenuation (± 3 dB): 34dB
•Attenuation at 8KHz (dB): 45.6dB
•Approximate weight: 356 Kg
•Window: double glazed
•Doors: open to the right or left*
•Access ramps: optional
•Lock points: central
•Base: plinth (silent block) 4 cm or wheels*
•Table: drawer or folding*
•Exterior finish: gray melamine
•Interior finish: 20/10 pyramid foam or DELUXE microperforated*
•Ventilation: free through labyrinth
•Interior lighting: 35W lamp or LED lights*
•Connection plate: 5 jacks of Ø 6.3mm and 1 jack of Ø 3.5mm or customizable*
•Pre-installation for free field: yes
•Power supply: 120-220 V 50-60 Hz
•Power: 50W

Optional accessories

•Wheelchair access ramp
•USB-RS232 connection panel
•Washable microperforated interior lining (DELUXE)
•Wheels
•LED lights
•Pre-installation for free field
•Folding table
•Door opening situation
•Customizable
•Additional windows

Free ventilation through labyrinth
This system consists of a labyrinth integrated into the cabin ceiling, protected by insulating material that allows the cabin to be ventilated and attenuates sound transmission.

The cabin is shipped disassembled, the high weight of the pieces makes it necessary for two people with some physical strength to assemble it.

Assembly is not included in the price, you can request an assembly quote.
