Reference. 1250CE0150ABRPC70X

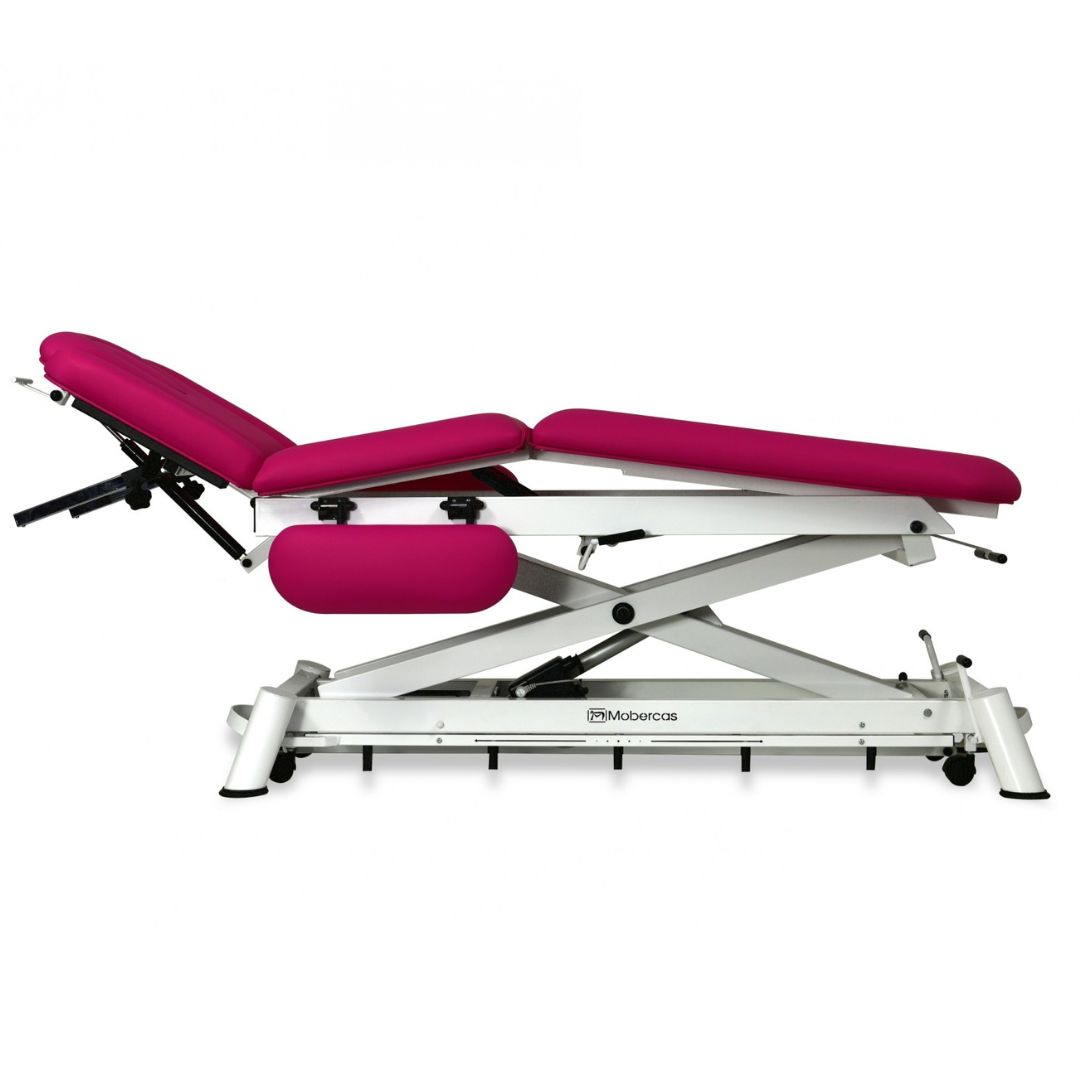

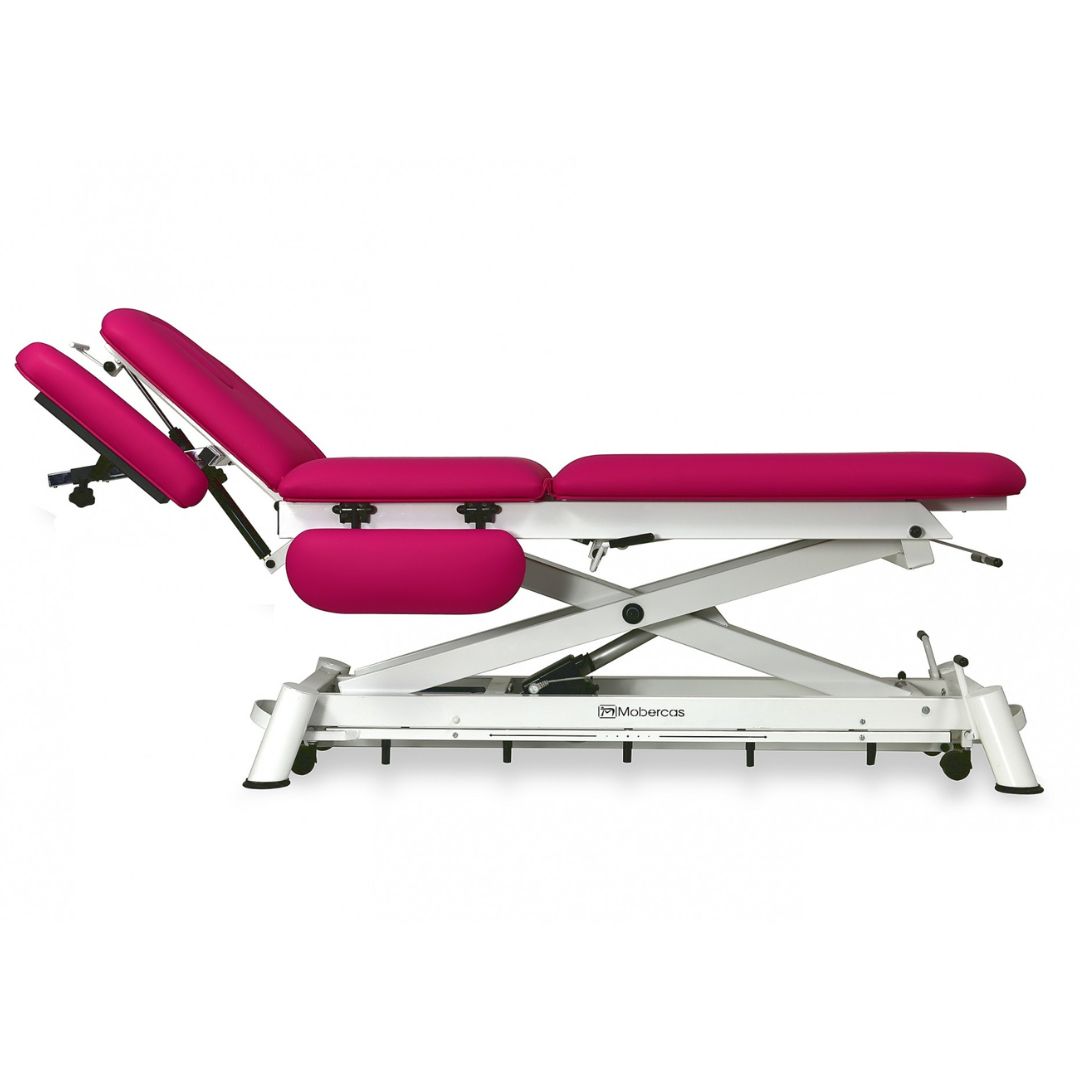

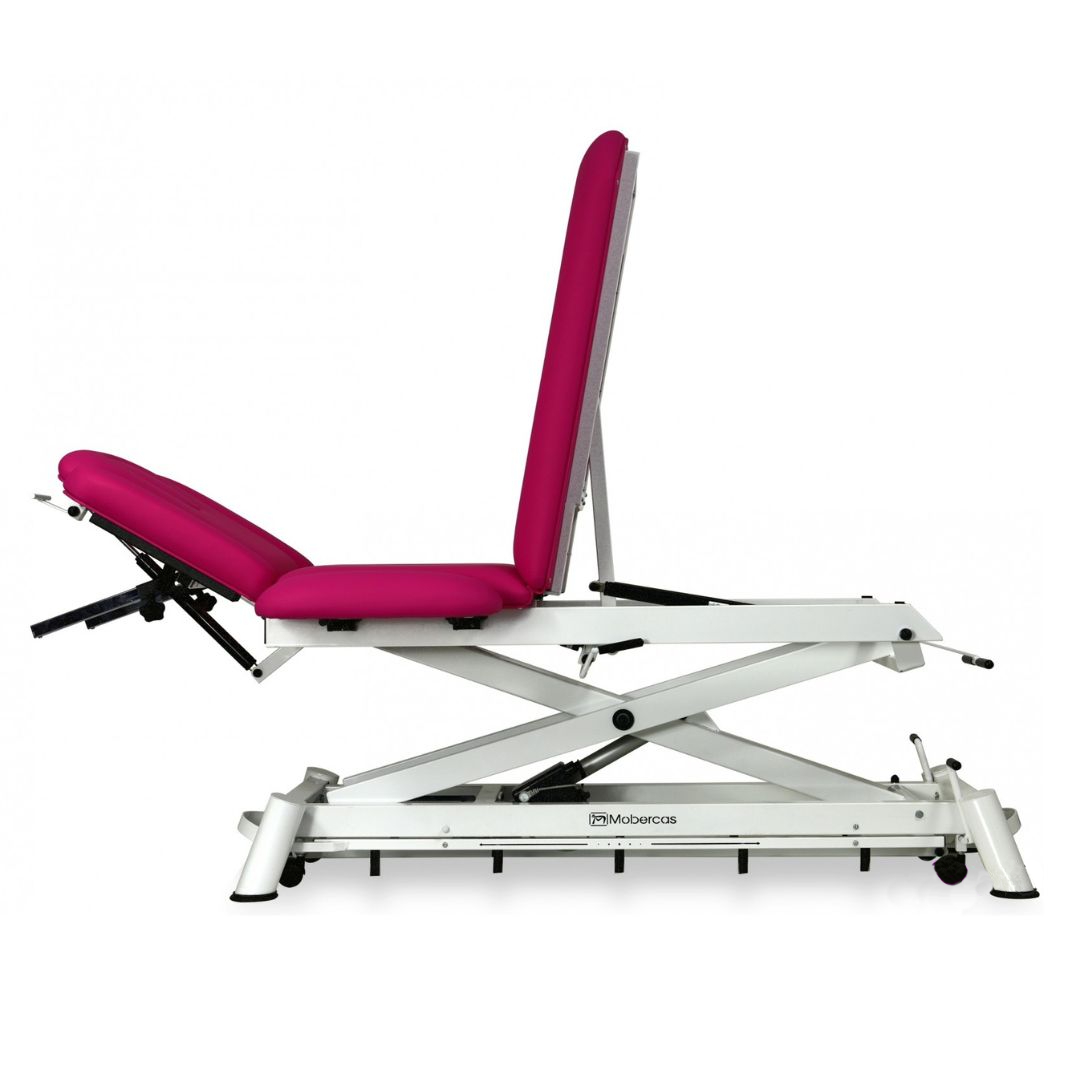

5-section electric stretcher, scissor, trendelenburg. 70x191cm. Various colors.
5-section electric stretcher with reclining backrest in negative and straight elevation. With Trendelenburg position by means of two gas pistons. Dimensions: 70 x 191 cm.
Personal advice
Description
5-section electric stretcher with reclining backrest in negative and straight rise without lateral displacement. With Trendelenburg position by means of two gas pistons. Includes base paper roll holder, armrests adjustable in height and width on the backrest, flat upholstered armrests, facial plug and retractable wheels.
General features:
- Headrest with hole and facial plug.
- Negative proclivity/decline.
- Backrest-level armrests adjustable in height and width, as well as foldable flat armrests.
- Footrest (third body) elevating/reclining.
- Facial hole, hand control 1 and facial plug.
- Trendelenburg.
Functionalities:
- 1 electric motor.
- Motorized in height (adjustable).
- Backrest foldable/reclinable by means of a gas piston.
- Footrest (third body), central fold and trendelenburg by means of two gas pistons.

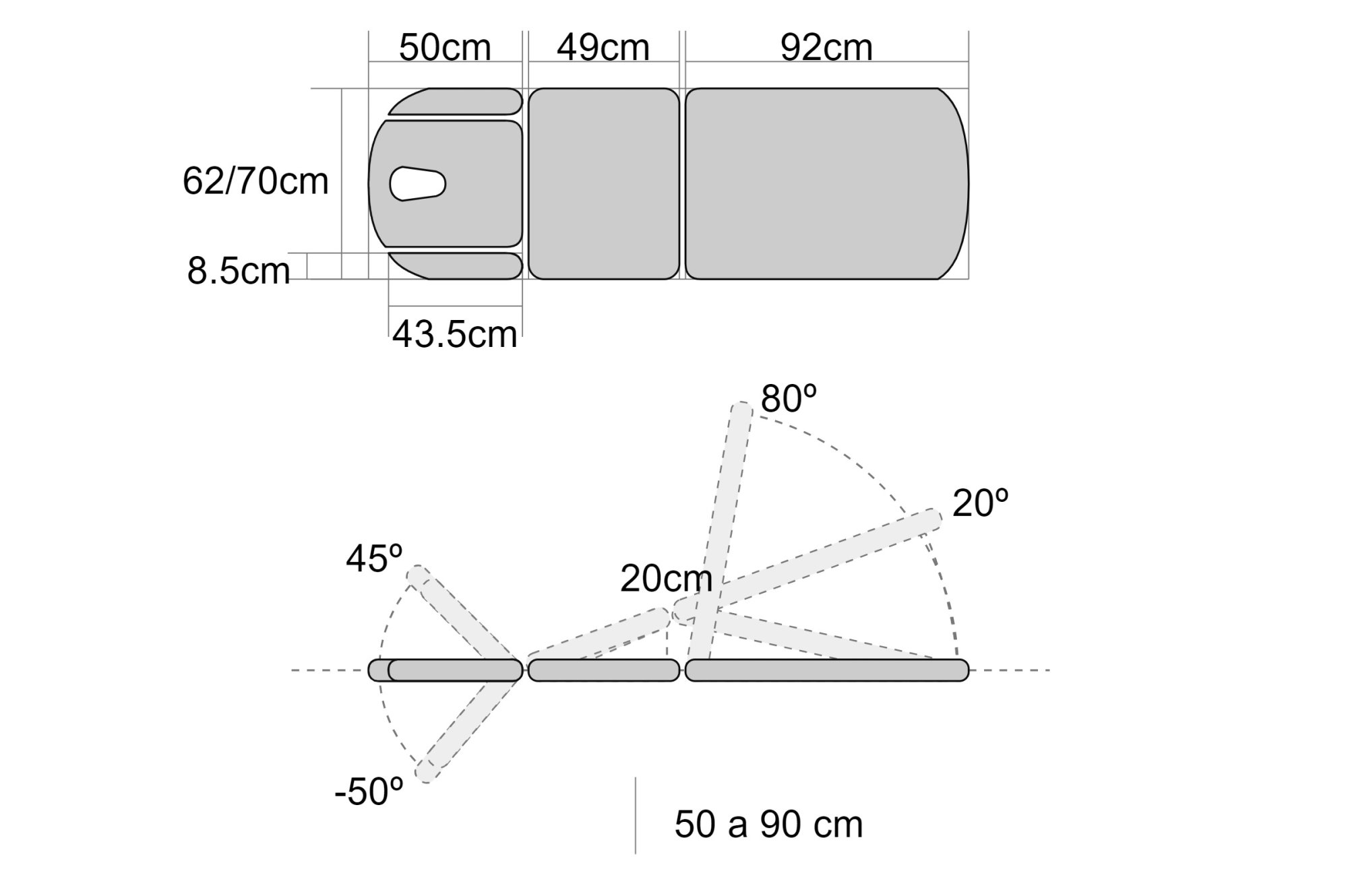

Technical specifications of the structure:
- Scissor structure, with straight rise.
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Leg rest length: 92 cm.
- Total length: 191 cm.
- Width: 70 cm.
- Foam thickness: 5 cm.
- Foam density: 30 kg/m³.
- Adjustable height: 50 to 90 cm.
- Leg rest inclination angle: 80º.
- Structure material: steel tube covered with epoxy powder, oven-baked at 210ºC.

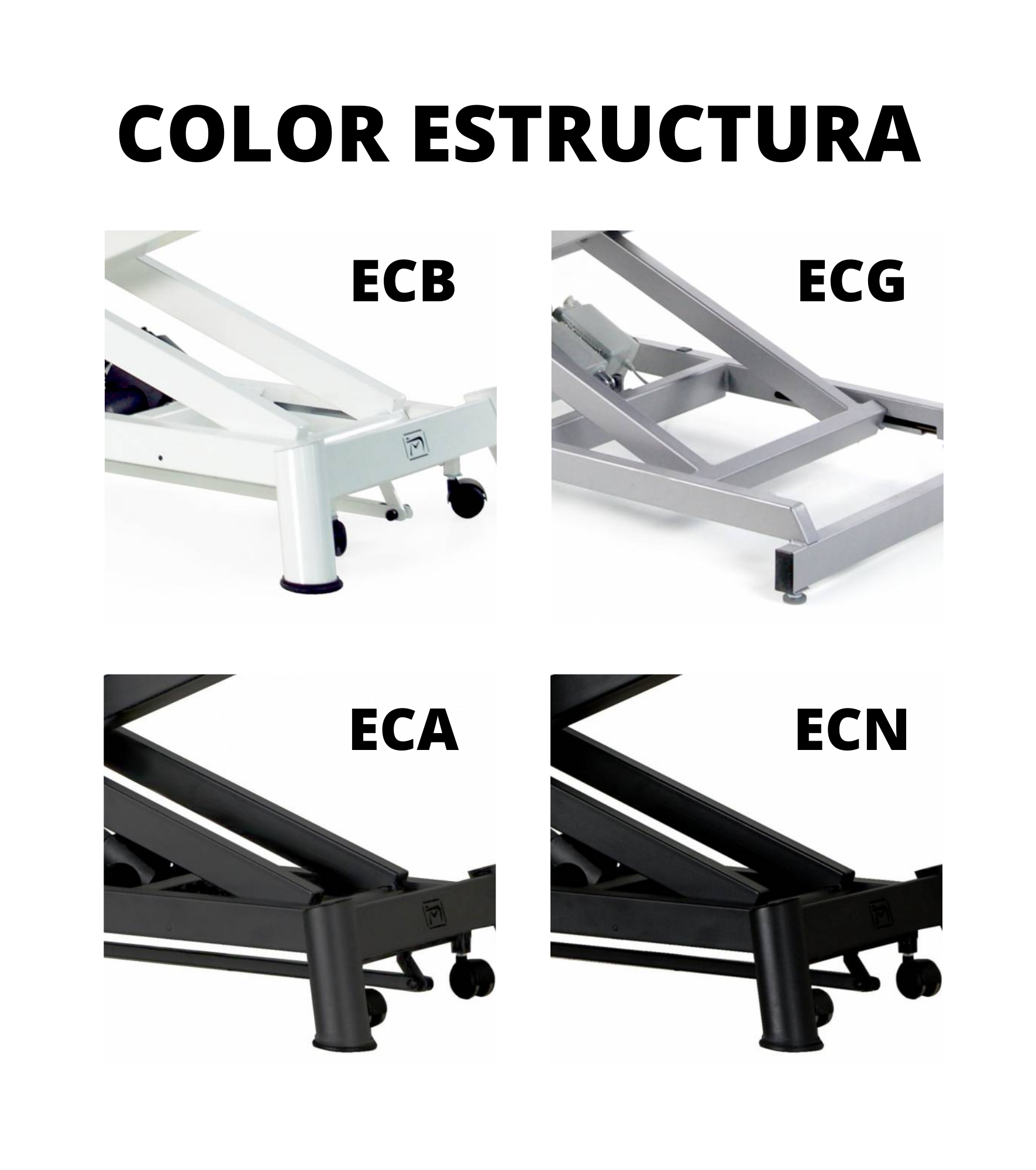

- Structure color: to choose.
- Maximum load: 180 kg.
- Double retractable wheels by means of a single pedal Ø 50mm.
Upholstery features:
- Fire-retardant material (consult the attached image for the regulations on fire-retardant materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Sunflower oil resistant.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Safety of toys).
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to prevent permanent staining.
- Soft soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Consult the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you need more complete cleaning instructions, please contact us.
Regulations and certifications:
- CE PRODUCT Made in Spain.
- ISO 13485 Quality management system applicable to medical devices.
Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods into the customer's facilities.
Possibility of adding accessories (price not included)
General features:
- Headrest with hole and facial plug.
- Negative proclivity/decline.
- Backrest-level armrests adjustable in height and width, as well as foldable flat armrests.
- Footrest (third body) elevating/reclining.
- Facial hole, hand control 1 and facial plug.
- Trendelenburg.
Functionalities:
- 1 electric motor.
- Motorized in height (adjustable).
- Backrest foldable/reclinable by means of a gas piston.
- Footrest (third body), central fold and trendelenburg by means of two gas pistons.
Technical specifications of the structure:
- Scissor structure, with straight rise.
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Leg rest length: 92 cm.
- Total length: 191 cm.
- Width: 70 cm.
- Foam thickness: 5 cm.
- Foam density: 30 kg/m³.
- Adjustable height: 50 to 90 cm.
- Leg rest inclination angle: 80º.
- Structure material: steel tube covered with epoxy powder, oven-baked at 210ºC.
- Structure color: to choose.
- Maximum load: 180 kg.
- Double retractable wheels by means of a single pedal Ø 50mm.
Upholstery features:
- Fire-retardant material (consult the attached image for the regulations on fire-retardant materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Sunflower oil resistant.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Safety of toys).
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to prevent permanent staining.
- Soft soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Consult the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you need more complete cleaning instructions, please contact us.
Regulations and certifications:
- CE PRODUCT Made in Spain.
- ISO 13485 Quality management system applicable to medical devices.
Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods into the customer's facilities.
Possibility of adding accessories (price not included)
