Reference. 1250CH2137PC62X

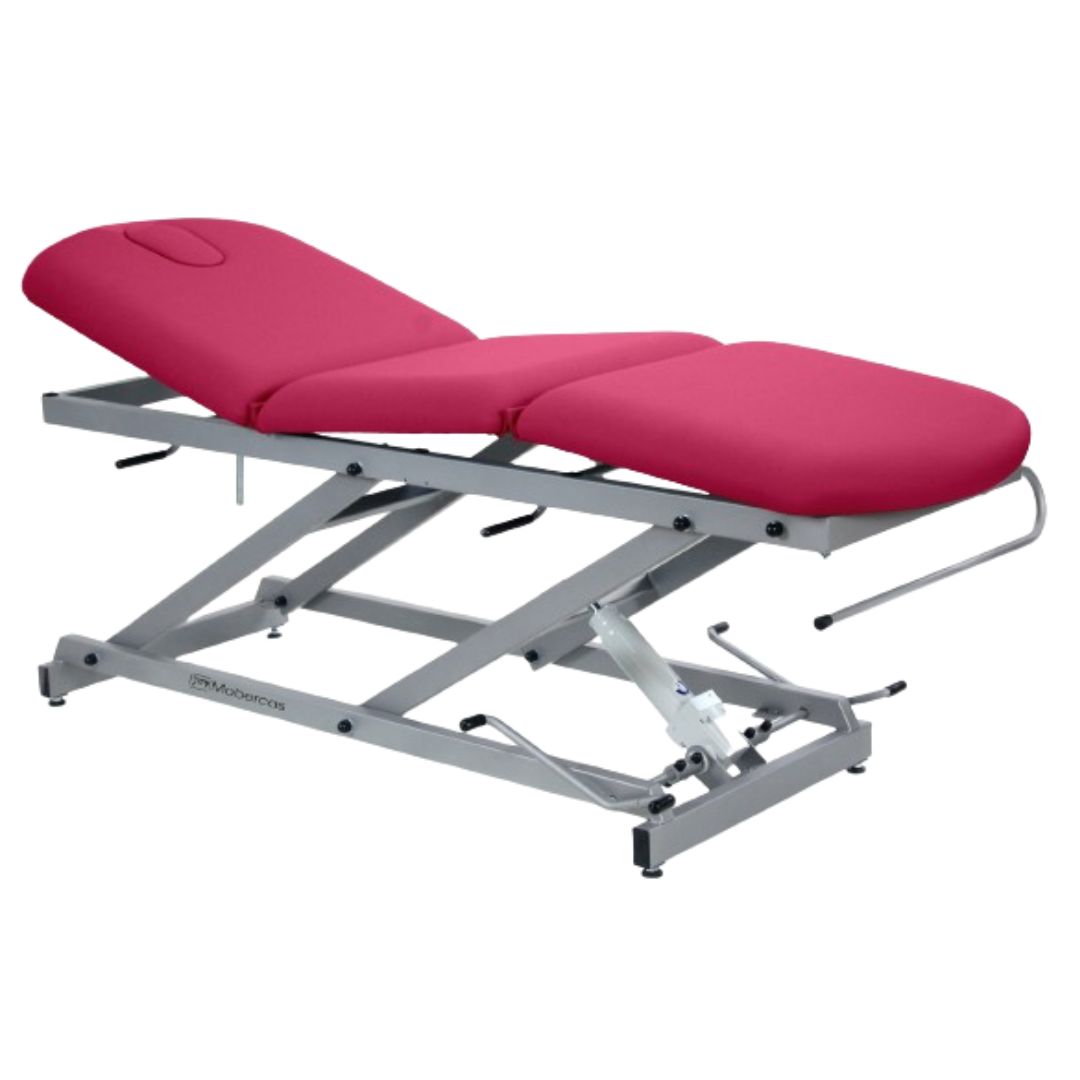

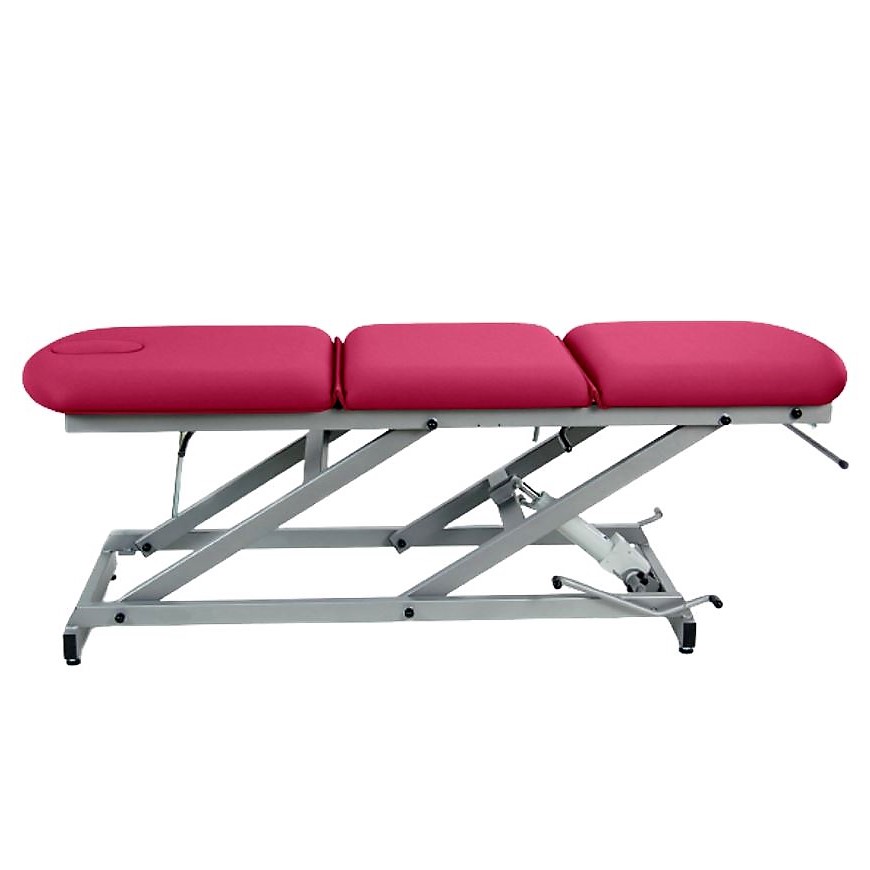

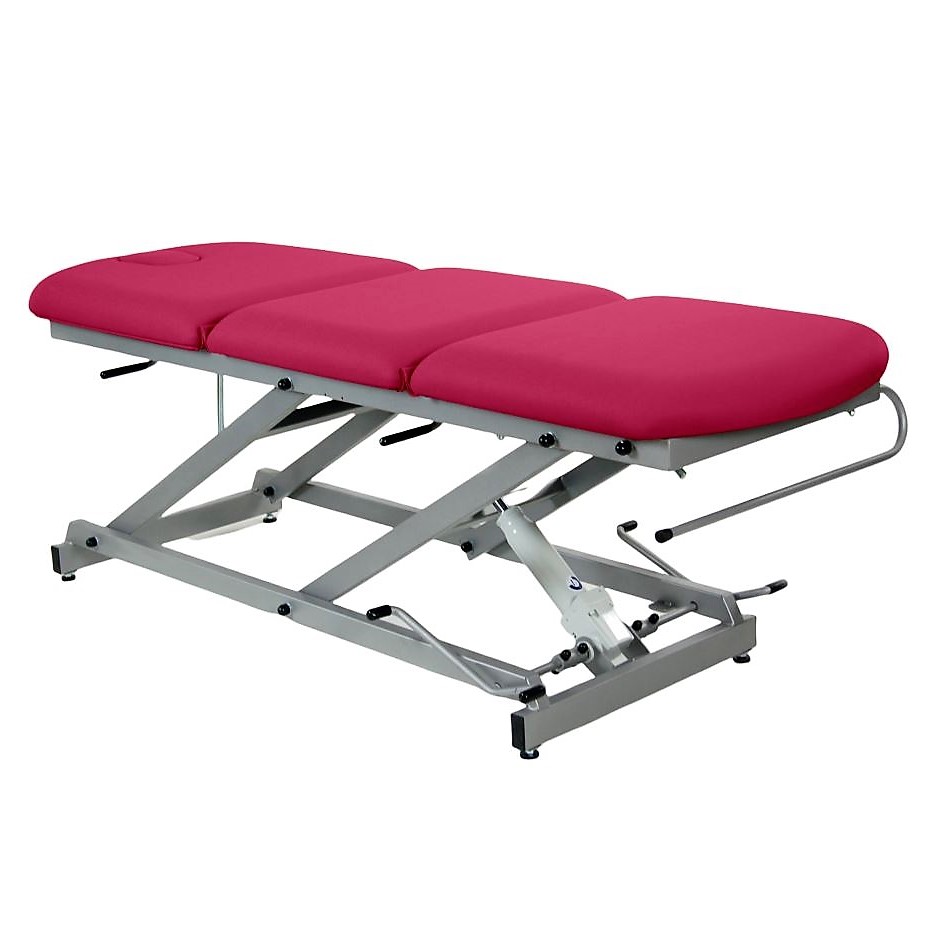

3-section hydraulic stretcher 184x62cm, with central fold. Various colors
3-section hydraulic stretcher with central fold. Various colors and its dimensions are 184 cm long and 62 cm wide.
Personal advice
Description

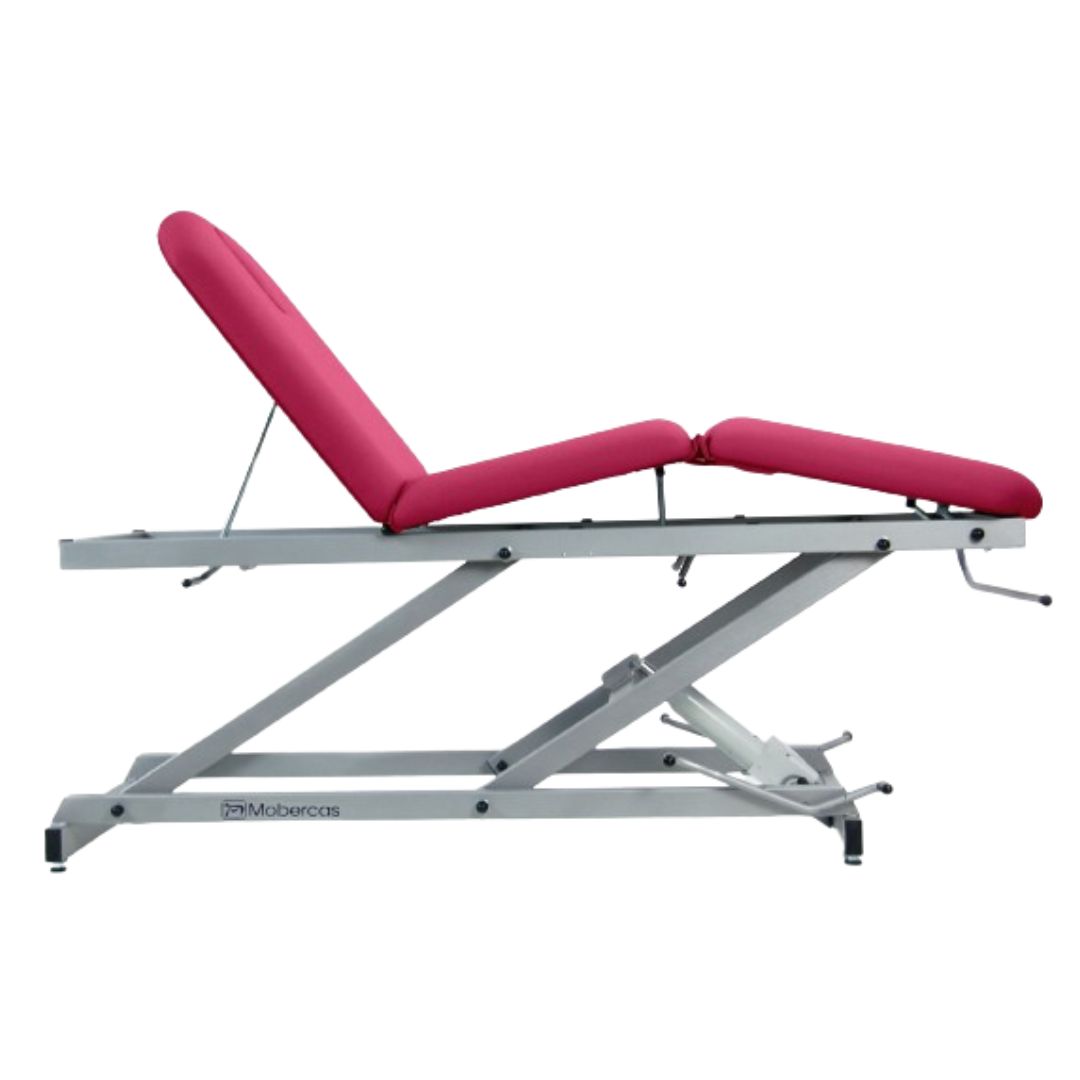

Hydraulic stretcher with height adjustment that has 3 adjustable bodies in order to adapt the patient's position to the one required for each procedure, especially in the field of physiotherapy and rehabilitation. The backrest can be tilted up to 70º and, along with the central fold, is manually adjusted by lever.
The structure has been made from highly resistant steel tube capable of supporting up to 180 kg in weight.
General features:
- The backrest has been developed with a facial hole for better patient placement. It comes with the convenient facial plug to cover the hole when needed.
- The legs have adjustable levelers to avoid possible floor irregularities and thus provide greater stability.
- Includes roll holder.
- 3-year warranty.
- Made in Spain.
Upholstery features:
- Fireproof material (see in the attached image the regulations on fireproof materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oils.
- Stain-resistant surface.
- In accordance with UNE EN/71-3 standard (Toy safety).
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to avoid permanent staining.
- Soft soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Consult the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you want more complete cleaning instructions, please contact us.

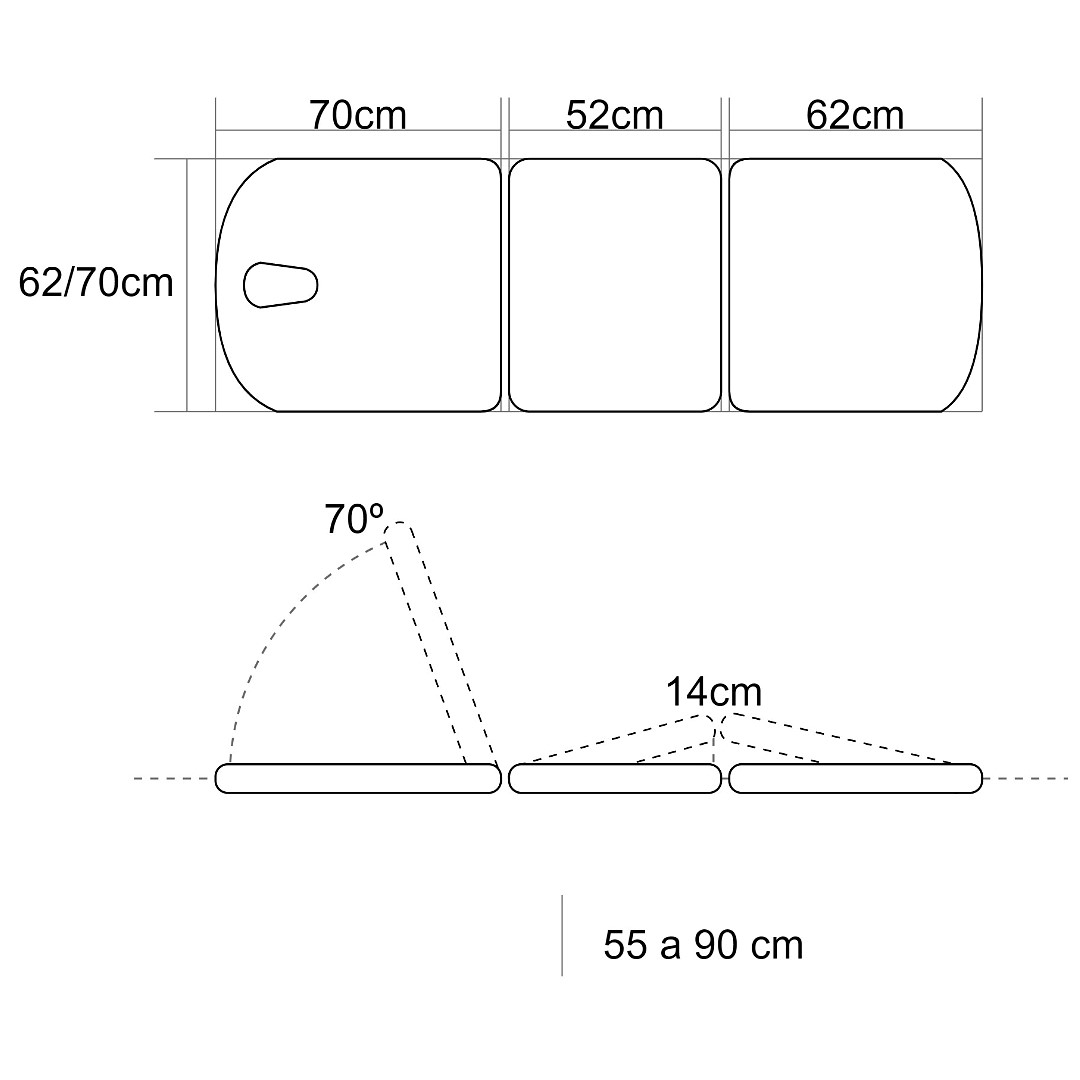

Technical specifications:
- Backrest length: 70 cm.
- Seat length: 52 cm.
- Leg rest length: 62 cm.
- Total length: 184 cm.
- Width: 62 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 55 to 90 cm.
- Backrest tilt angle: 70º.
- Central fold lift: 14 cm.

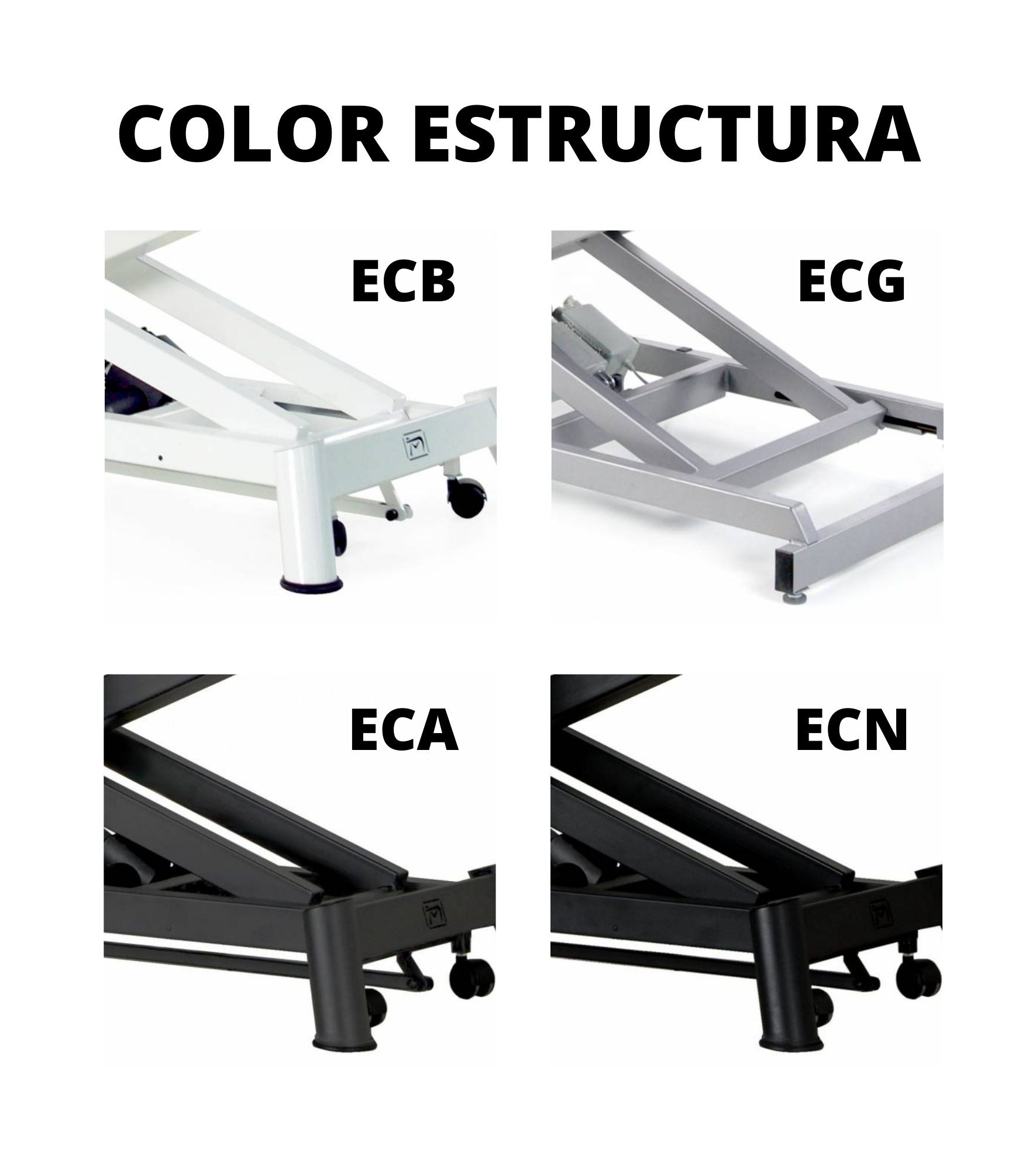

- Structure material: epoxy powder coated steel tube, oven baked at 210ºC.
- Structure color: silver.
- Maximum load: 180 kg.

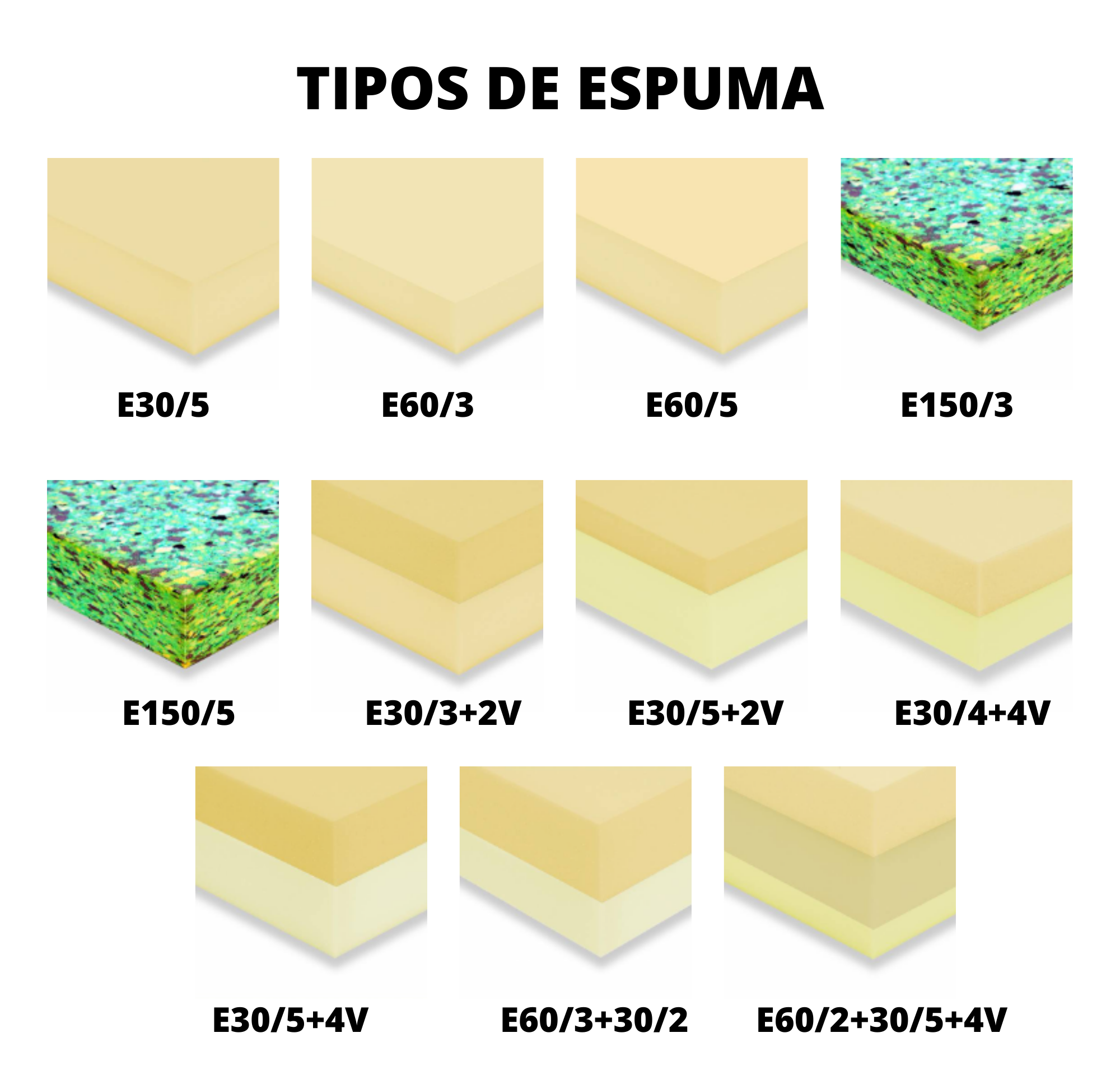

Foam options:
If you wish, you can purchase your stretcher with a different type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³
Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods inside the customer's facilities.
*If you want to purchase the stretcher with different features in terms of upholstery, foam, structure finish and height, please contact us.
The structure has been made from highly resistant steel tube capable of supporting up to 180 kg in weight.
General features:
- The backrest has been developed with a facial hole for better patient placement. It comes with the convenient facial plug to cover the hole when needed.
- The legs have adjustable levelers to avoid possible floor irregularities and thus provide greater stability.
- Includes roll holder.
- 3-year warranty.
- Made in Spain.
Upholstery features:
- Fireproof material (see in the attached image the regulations on fireproof materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oils.
- Stain-resistant surface.
- In accordance with UNE EN/71-3 standard (Toy safety).
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to avoid permanent staining.
- Soft soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Consult the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you want more complete cleaning instructions, please contact us.
Technical specifications:
- Backrest length: 70 cm.
- Seat length: 52 cm.
- Leg rest length: 62 cm.
- Total length: 184 cm.
- Width: 62 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 55 to 90 cm.
- Backrest tilt angle: 70º.
- Central fold lift: 14 cm.
- Structure material: epoxy powder coated steel tube, oven baked at 210ºC.
- Structure color: silver.
- Maximum load: 180 kg.
Foam options:
If you wish, you can purchase your stretcher with a different type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³
Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods inside the customer's facilities.
*If you want to purchase the stretcher with different features in terms of upholstery, foam, structure finish and height, please contact us.
