Reference. 400180650

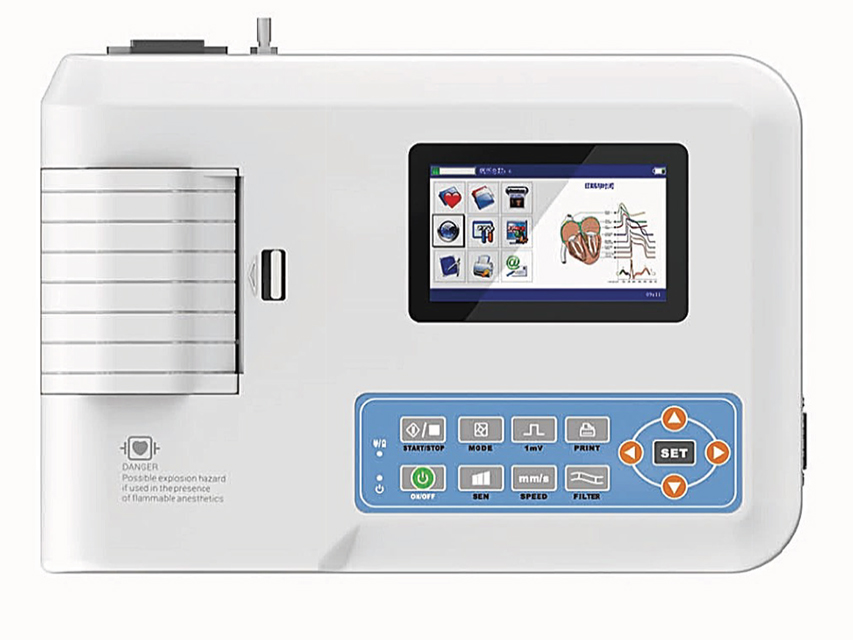

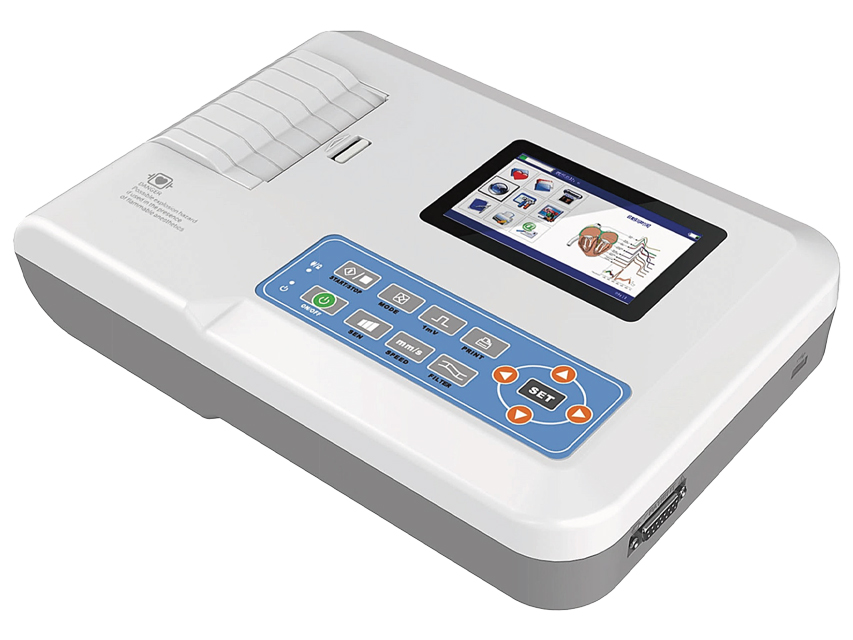

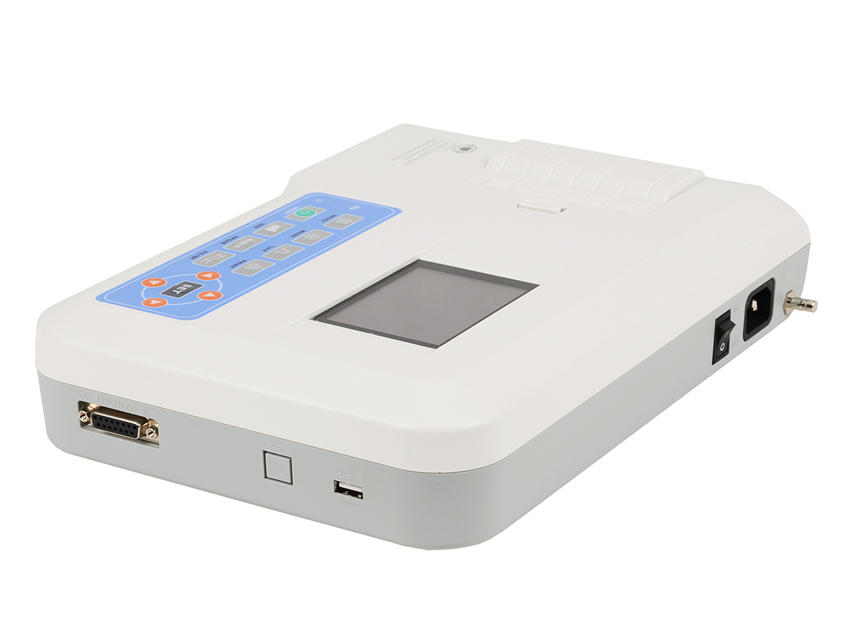

3-channel electrocardiograph with VET 300G monitor
3-channel electrocardiograph designed to record the electrical signals of animal hearts and display their heartbeat, as well as to store and manage this data.
Personal advice
Description
3-channel electrocardiograph designed to record the electrical signals of animal hearts and display how they beat, as well as to store and manage this data.
Product Contents:
• 5-lead veterinary ECG cable.
• 5 metal clamps.
• Chest electrodes (1 set).
• Ground cable.
• Power cable.
• Paper roll.
• Manual: GB and IT.
General Features:
- Can collect 12-lead ECG signals simultaneously.
- Prints waveform using a thermal printing system.
- Records and displays the ECG waveform in AUTOMATIC or manual mode, measuring and automatically diagnosing the parameters of the ECG waveform.
- Synchronized collection.
- Digital signal processing technology to obtain a high-quality ECG waveform through a power frequency filter, a baseline filter and an ECG signal EMG filter.
- Display of 12-lead ECG, printing mode, sensitivity, paper speed, and all other functions, on one screen.
- Multiple printing modes and formats, including automatic and manual.
- The length of the waveform can be adjusted using the timed printing function.
- Built-in large-capacity memory (can store at least 1000 cases).
- Multilingual interface and report: GB, FR, IT, ES, PT, DE, PL, BG, SI, SK, RS, UA, TR.
Technical Specifications:
- Input safety type: Class I, CF type applied part.
- Lead: Standard (12 leads).
- Input form: Floating and defibrillation protected.
- Patient leakage current: < 10 µA.
- Sampling frequency: 1000 Hz.
- Frequency response: 0.05 ~ 150 Hz (- 3 dB, + 0.4 dB).
- Discard EMG interference wave data filter: 25 Hz/35 Hz (-3 dB).
- AC filter: 50 Hz/60 Hz (-20 dB).
- Recording form: Thermal printing system (32 dots/mm).
- Recording paper: 80 mm x 20 m.
- Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s, ± 5%.
- Sensitivity: 5, 10, 20 mm/mV, ± 2% accuracy.
- Auto recording: recording configuration according to the format and auto recording mode, automatically switches leads, measures and analyzes.
- Rhythm recording: recording configuration according to rhythm Format and recording mode, measures and automatically analyzes.
- Manual recording: records according to the manual recording format.
- Power supply:
· AC: 110-240 V, 50/60 Hz.
· DC - Lithium Battery: 7.4 V, 3500 mAh rechargeable lithium battery.
- 2 pieces f5 × 20 mm AC Time Delay Fuse; T250 mA / 250 V (Power supply: 220 V).
- Dimensions: 315 x 215 x 77 mm.
- Net weight: 1.6 kg.
- A/D Conversion: 12 bit.
- Time Constant: = 3.2 s.
- CMRR: > 105 dB.
- Durable polarization voltage: ± 500 mV.
- Noise level: = 12 µVp-p.
Product Contents:
• 5-lead veterinary ECG cable.
• 5 metal clamps.
• Chest electrodes (1 set).
• Ground cable.
• Power cable.
• Paper roll.
• Manual: GB and IT.
General Features:
- Can collect 12-lead ECG signals simultaneously.
- Prints waveform using a thermal printing system.
- Records and displays the ECG waveform in AUTOMATIC or manual mode, measuring and automatically diagnosing the parameters of the ECG waveform.
- Synchronized collection.
- Digital signal processing technology to obtain a high-quality ECG waveform through a power frequency filter, a baseline filter and an ECG signal EMG filter.
- Display of 12-lead ECG, printing mode, sensitivity, paper speed, and all other functions, on one screen.
- Multiple printing modes and formats, including automatic and manual.
- The length of the waveform can be adjusted using the timed printing function.
- Built-in large-capacity memory (can store at least 1000 cases).
- Multilingual interface and report: GB, FR, IT, ES, PT, DE, PL, BG, SI, SK, RS, UA, TR.
Technical Specifications:
- Input safety type: Class I, CF type applied part.
- Lead: Standard (12 leads).
- Input form: Floating and defibrillation protected.
- Patient leakage current: < 10 µA.
- Sampling frequency: 1000 Hz.
- Frequency response: 0.05 ~ 150 Hz (- 3 dB, + 0.4 dB).
- Discard EMG interference wave data filter: 25 Hz/35 Hz (-3 dB).
- AC filter: 50 Hz/60 Hz (-20 dB).
- Recording form: Thermal printing system (32 dots/mm).
- Recording paper: 80 mm x 20 m.
- Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s, ± 5%.
- Sensitivity: 5, 10, 20 mm/mV, ± 2% accuracy.
- Auto recording: recording configuration according to the format and auto recording mode, automatically switches leads, measures and analyzes.
- Rhythm recording: recording configuration according to rhythm Format and recording mode, measures and automatically analyzes.
- Manual recording: records according to the manual recording format.
- Power supply:
· AC: 110-240 V, 50/60 Hz.
· DC - Lithium Battery: 7.4 V, 3500 mAh rechargeable lithium battery.
- 2 pieces f5 × 20 mm AC Time Delay Fuse; T250 mA / 250 V (Power supply: 220 V).
- Dimensions: 315 x 215 x 77 mm.
- Net weight: 1.6 kg.
- A/D Conversion: 12 bit.
- Time Constant: = 3.2 s.
- CMRR: > 105 dB.
- Durable polarization voltage: ± 500 mV.
- Noise level: = 12 µVp-p.
