Reference. 400133306

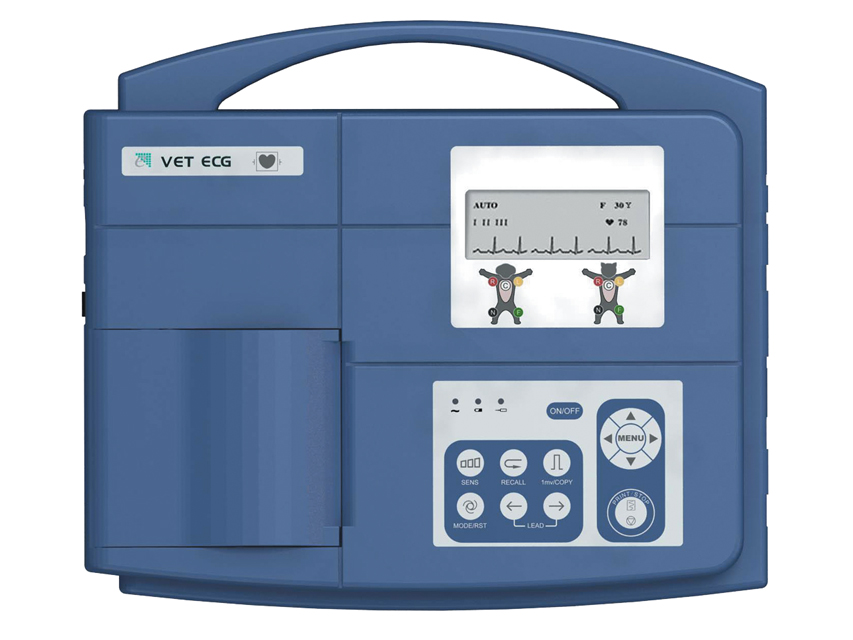

3-channel VE-300 Electrocardiograph
3-channel electrocardiograph designed to record the electrical signals of animal hearts and display how they beat, as well as to store and manage this data.
Personal advice
Description
3-channel electrocardiograph designed to record the electrical signals of animal hearts and display how they beat, as well as to store and manage these data.
General Features:
- Full digital design.
- Includes an LCD screen where it displays waveforms and where parameters can be set.
- High-resolution thermal printer
- Built-in rechargeable lithium-ion battery for 6.5 hours of use (AC/DC power).
- Complete digital filter, avoids baseline drift, AC and EMG interference.
- Automatically adjustable baseline, optimizing print position.
- Possibility to select its operation: manual/automatic.
- Simultaneous acquisition of 12 leads.
- Automatic measurement and analysis of ECG parameters.
- Supports USB inkjet printer for printing of 12 leads.
- Storage and data transfer of 120 patients via USB flash drive, Ethernet port or serial.
- Multilingual internal software: GB, IT, DE, FR, ES.
- Possibility to review and manage stored data on Windows PC with optional software (Ref: 400133336).
Technical Specifications:
- Cable: standard 12 channels.
- Acquisition mode: 12 leads simultaneously.
- Frequency response: 0.05 Hz ~ 150 Hz.
- Sensitivity: 2.5, 5, 10, 20 (mm/mV).
- Input impedance: >50 MO (10 Hz).
- Filter:
· MG filter 25/35/45 Hz/OFF.
· DFT filter 0.05/0.15/0.25/0.32/0.5/0.67 Hz.
· Low pass filter 150/100/75 Hz.
· AC filter activated/deactivated.
- Recording mode: Automatic/Manual/Rhythm/OFF/USBPRT.
- Safety standard: IEC I/CF.
- Power supply: AC: 100-115-220-240 V, 50/60 Hz.
- Built-in rechargeable lithium-ion battery: voltage of 14.8 V and over 6.5 hours of continuous operation with battery supply.
- Thermal paper: 80 mm x 20 m.
- Paper speed 5/6.25/10/12.5/25/50 mm/s (± 3%).
- Size: 300 x 260 x 75 mm.
- Weight: 2.5 kg (with battery).
- LCD screen 192 x 64 pixels.
- External input/output:
· Input =100 kO; Sensitivity 10 mm/V ± 5%.
· Output =100 kO; Sensitivity 1 mm/V ± 5%.
- Communication interface: Ethernet, RS232, USB.
- Type: Not a medical device
Available accessories:
• 5-lead veterinary ECG cable (Ø 4 mm, banana connector, IEC).
• Veterinary clip electrodes (set of 5, compatible with Ø 3-4 mm ECG cable).
• 1 roll of paper.
• Rechargeable lithium battery (2200 mAh).
• Manual: GB and IT - on request FR, ES, DE.
General Features:
- Full digital design.
- Includes an LCD screen where it displays waveforms and where parameters can be set.
- High-resolution thermal printer
- Built-in rechargeable lithium-ion battery for 6.5 hours of use (AC/DC power).
- Complete digital filter, avoids baseline drift, AC and EMG interference.
- Automatically adjustable baseline, optimizing print position.
- Possibility to select its operation: manual/automatic.
- Simultaneous acquisition of 12 leads.
- Automatic measurement and analysis of ECG parameters.
- Supports USB inkjet printer for printing of 12 leads.
- Storage and data transfer of 120 patients via USB flash drive, Ethernet port or serial.
- Multilingual internal software: GB, IT, DE, FR, ES.
- Possibility to review and manage stored data on Windows PC with optional software (Ref: 400133336).
Technical Specifications:
- Cable: standard 12 channels.
- Acquisition mode: 12 leads simultaneously.
- Frequency response: 0.05 Hz ~ 150 Hz.
- Sensitivity: 2.5, 5, 10, 20 (mm/mV).
- Input impedance: >50 MO (10 Hz).
- Filter:
· MG filter 25/35/45 Hz/OFF.
· DFT filter 0.05/0.15/0.25/0.32/0.5/0.67 Hz.
· Low pass filter 150/100/75 Hz.
· AC filter activated/deactivated.
- Recording mode: Automatic/Manual/Rhythm/OFF/USBPRT.
- Safety standard: IEC I/CF.
- Power supply: AC: 100-115-220-240 V, 50/60 Hz.
- Built-in rechargeable lithium-ion battery: voltage of 14.8 V and over 6.5 hours of continuous operation with battery supply.
- Thermal paper: 80 mm x 20 m.
- Paper speed 5/6.25/10/12.5/25/50 mm/s (± 3%).
- Size: 300 x 260 x 75 mm.
- Weight: 2.5 kg (with battery).
- LCD screen 192 x 64 pixels.
- External input/output:
· Input =100 kO; Sensitivity 10 mm/V ± 5%.
· Output =100 kO; Sensitivity 1 mm/V ± 5%.
- Communication interface: Ethernet, RS232, USB.
- Type: Not a medical device
Available accessories:
• 5-lead veterinary ECG cable (Ø 4 mm, banana connector, IEC).
• Veterinary clip electrodes (set of 5, compatible with Ø 3-4 mm ECG cable).
• 1 roll of paper.
• Rechargeable lithium battery (2200 mAh).
• Manual: GB and IT - on request FR, ES, DE.
